ZXJ1-29 Linear Push Rod Motor
Product Introduction
- Model: ZXJ1-29, designed for efficient linear motion applications.
- Input Current: 2A, ensuring optimal power consumption for smooth operation.
- Rated Load: 90 N, capable of handling significant loads for reliable operation.
Product Application
- Cooker hood
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage (DC.V) |
Input Current (A) |
Perating StrokeU (mm) |
Rated Load (N） |
Rated Current (mA) |
Working Time (Rated Load) (s) |
Stall Current (A) |
| ZXJ1-29 | 12 | 2 | 88.1±1 | 90 | 8 | 9士2 | 1~1.6 |

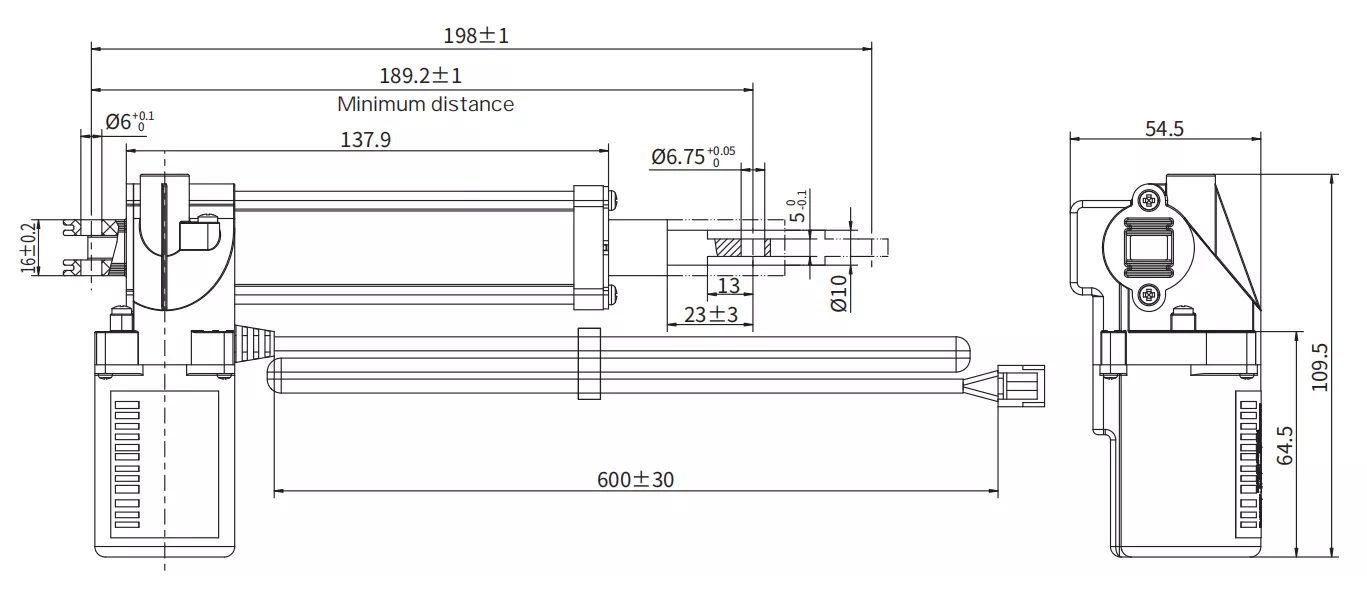

Mechanical Dimensions: mm
