ZXJ1-12 Linear Actuator Motor
Product Introduction
- Linear actuator motor ZXJ1-12
- Rated Voltage: 29V DC, ensuring compatibility with low-voltage electrical systems.
- Protection Class: Rated IP51, providing protection against dust and water splashes.
- Stroke Control: ±2 mm, allowing precise control of the actuator’s position.
Product Application
- Smart Home: Smart Bed
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated Thrust (N) |
Thrust (N) |
Self-locking Force (N) |
Load Speed (mm/s) |
Rated Voltage (VDC) |
Operating Frequency | Maximum Power (W) |
Smallest Installation Size (mm) |
Stroke (mm) |
Stroke Control (mm) |
Protection Class |
| 6000 | 7000 | 6000 | 3 ～ 6 | 29 | Up to consecutive | 65 | 170 ～ 430 | 30 ～ 330 | ±2 | IP51 |
| 5000 | 6000 | 3500 | 8 ～ 10 | Work 2 minutes | 70 | (customizable) | (customizable) | |||
| 4000 | 5000 | 3000 | 8 ～ 16 | 18 minutes | 75 |

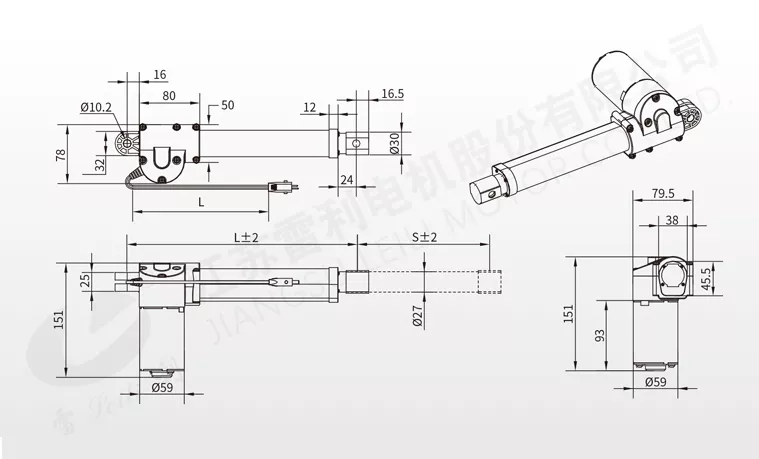

Mechanical Dimensions: mm
