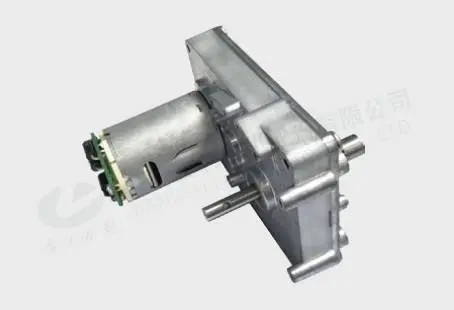

Valve Motor
Product Introduction
- This product is mainly used for valve control in heating equipment
- Model: 36ZYJ1-1, 36ZYJ1-2, 36ZYJ1-3, 36ZYJ1-4
- Reduction Ratio: Features a 1/506.19 reduction ratio, ensuring precise and controlled movement.
- Input Current: ≤ 0.15A, optimizing energy consumption while maintaining reliable performance.
Product Application
Industrial equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage (V AC/DC) |
Reduction Ratio |
Input Current (mA) |
No-load Speed (r/min) |
Rated Load (N) |
Rated Current (mA) |
Rated Speed (r/min) |
Stall Current (A) |
Stalled Torque mN•m |
| 36ZYJ1-1 | 24 | 1/506.19 | ≤0.15 | 2.5≤X≤4 | 4520 | ≤0.24 | 2≤X≤3 | ≤0.65 | ≥18000 |
| Model | Rated Voltage (V, AC/DC) |
Operating Frequency (PPS) |
Reduction Ratio |
No Load | Load, 2260m
N•m,min |
Stop Rotor | |||||
| Output Power |
Current （A） |
Rotate Speed (r/min) |
Output Power |
Current （A） |
Rotate Speed (r/min) |
mN•m | Current （A） |
||||
| 36ZYJ1-2 | 24 | 50/60 | 1/506.19 | 2.4max | 0.1max | 3≤X≤4.5 | 5max | 0.25max | ≥2.3 | ≥8000 | <1 |
| 20.5 | 50/60 | 1/506.19 | – | – | – | – | – | – | ≥4520 | – | |
| 36ZYJ1-3 | 24 | 50/60 | 1/506.19 | 2.4max | 0.1max | 3≤X≤4.5 | 5max | 0.25max | ≥2.5 | ≥9100 | <1 |
| 20.5 | 50/60 | 1/506.19 | – | – | – | – | – | – | ≥4520 | – | |
| 36ZYJ1-4 | 24 | 50/60 | 1/506.19 | 4.8max | 0.2max | 3≤X≤6 | 7.2max | 0.3max | 4≤X≤6 | ≥8500 | <1 |
| 20.5 | 50/60 | 1/506.19 | – | – | – | – | – | – | ≥4520 | – | |

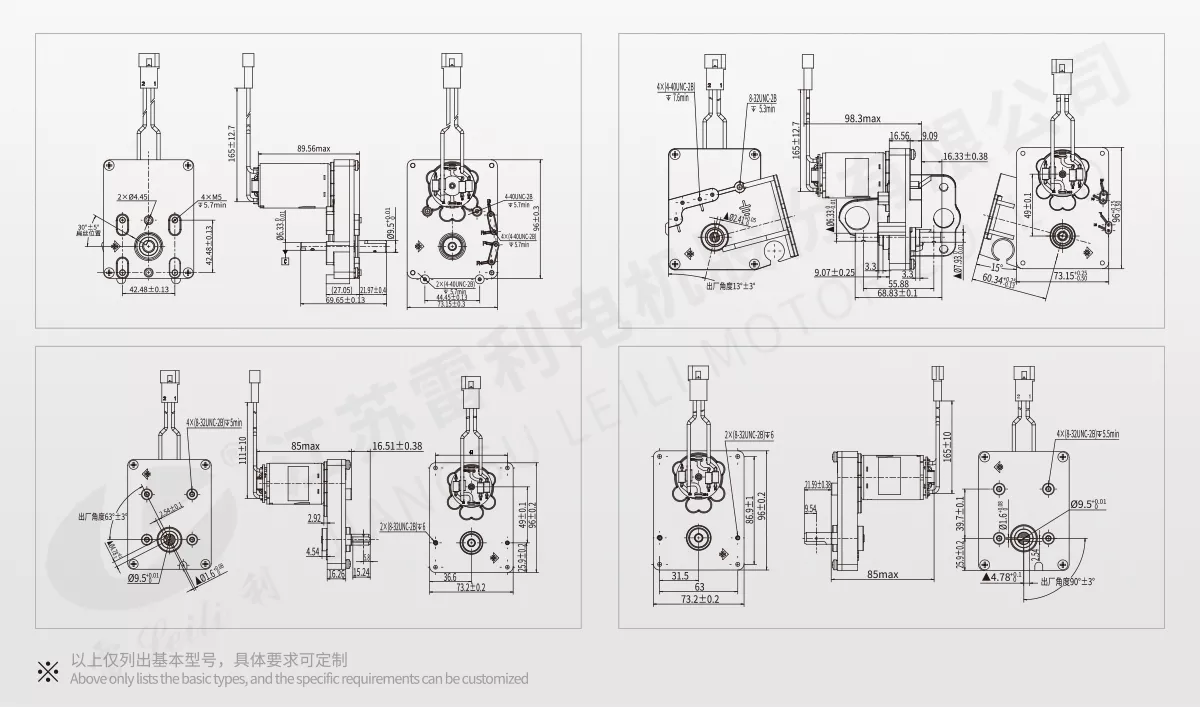

Mechanical Dimensions: mm
