TJB3-X Hysteresis Synchronous Motor
Product Introduction
- Operates at AC24V (50/60Hz) with ≤5W power and ≤400mA current.
- Delivers ≥0.144 N·m pull-out torque and ≥0.12 N·m starting torque.
- Maintains ≤50K temperature rise, ≤50 dB noise level, and ≥100 MΩ insulation resistance.
Product Application
- Valve control
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated | Rated | Rated | Rated | Pull-out | Starting | Restoring | Rotation | Noise | Temperature | Insulation | Insulation |
| Voltage (V) | Frequency (Hz) | Power (W) | Current (mA) | Torque（N.m） | Torque (N•m) | Torque（N.m） | dB (A) |
Rise (K) |
Grade | Resistance (MΩ) | |
| AC24 | 50/60 | ≤5 | ≤400 | ≥0.144 | ≥0.12 | ≤0.02 | CCW/CW | ≤50 | ≤50 | F | ≥100 |

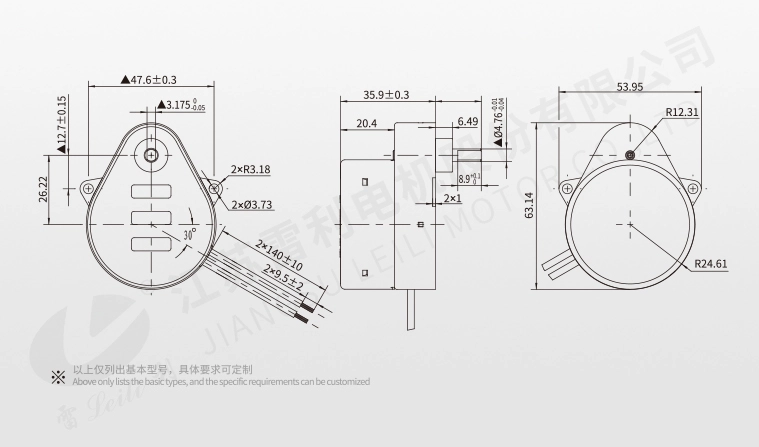

Mechanical Dimensions: mm
