TJB2-X Hysteresis Synchronous Motor
Product Introduction
- Operates at AC230V (50/60Hz) with ≤6W power and ≤30mA current.
- Delivers ≥0.07 N·m pull-out torque and ≥0.065 N·m starting torque.
- Maintains ≤50K temperature rise, ≤50 dB noise level, and ≥100 MΩ insulation resistance.
Product Application
- Valve control
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated | Rated | Rated | Rated | Pull-out | Starting | Restoring | Rotation | Noise | Temperature | Insulation | Insulation |
| Voltage (V) |
Frequency (Hz) |
Power (W) |
Current (mA) |
Torque (N.m) |
Torque (N•m) |
Torque (N.m) |
dB (A) |
Rise (K) |
Grade | Resistance (MΩ) |
|
| AC230 | 50/60 | ≤6 | ≤30 | ≥0.07 | ≥0.065 | ≤0.01 | CCW/CW | ≤50 | ≤50 | F | ≥100 |

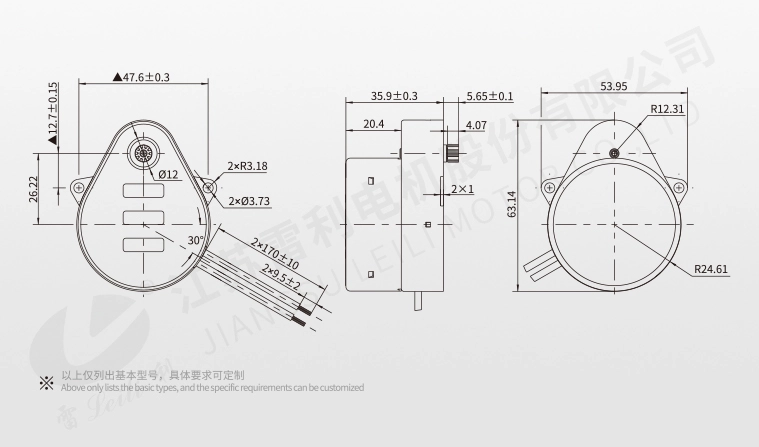

Mechanical Dimensions: mm
