SR Series Switched Reluctance BLDC Motor
Product Introduction
- Delivers up to 34,000 RPM no-load speed and F-class insulation for reliability.
- Offers up to 0.72 N·m torque with 1,800W rated power for demanding applications.
- Ensures ≤58 dB operation with robust, high-efficiency performance in a compact form factor.
Product Application
- Industry: Garden tools, industrial machinery
- Home appliances: wall breaking machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Phase | Pole | Rated Voltage (V) | Rated Speed (RPM) | RatedTorque (N·m) | Rated Power (W) | No-load Speed (RPM) | Insuiation Class | Noise dB(A) |
| SR8035 | 3 | 6/4 | 58 | 18000 | 0.36 | 670 | 24000 | F | 55 |
| SR8050 | 3 | 6/4 | 220 | 24000 | 0.72 | 1800 | 32000 | F | 55 |
| SR8027 | 2 | 6/4 | 220 | 34000 | 0.22 | 800 | 41000 | F | 58 |
| SR9527 | 2 | 6/4 | 220 | 28000 | 0.53 | 1550 | 31000 | F | 58 |

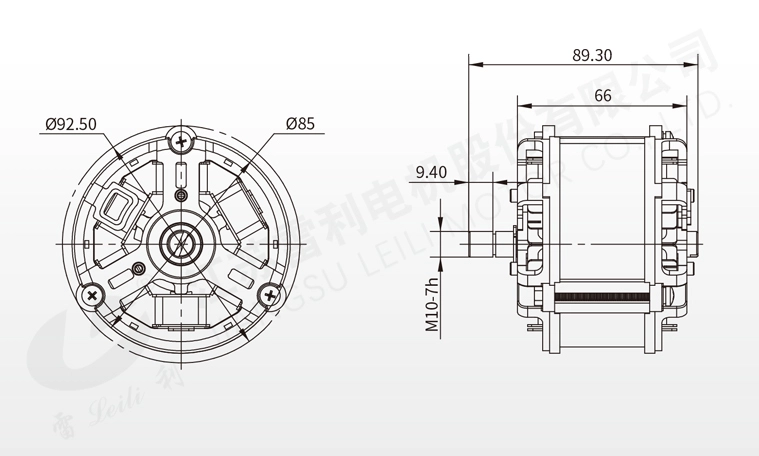

Mechanical Dimensions: mm
