35BY412 PM Stepper Motor
Product Introduction
- The 35BY412-56 motor features a 7.5° step angle, 24V, and 60 Ω coil resistance.
- It offers 100MΩ insulation resistance, 500V dielectric strength, and Class E insulation with 22.2 mm thickness.
Product Application
- Automotive active intake grille AGS
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Step Angle |
Drive Method (mm) |
Drive Circuit |
Drive Voltage |
Coil Resistance/ Phase(V) |
Insulation Resistance |
Dielectnic Strength |
Class of Insulation (Class) |
Standard Thickness (mm) |
| 35BY412-56 | 7.5° | 2-2 PHASE | UNIPOLAR | 24 | 60 | 100M[Ω] MIN | 500(V) AC( 1min) |
E | 22.2/15.5/12.5 |

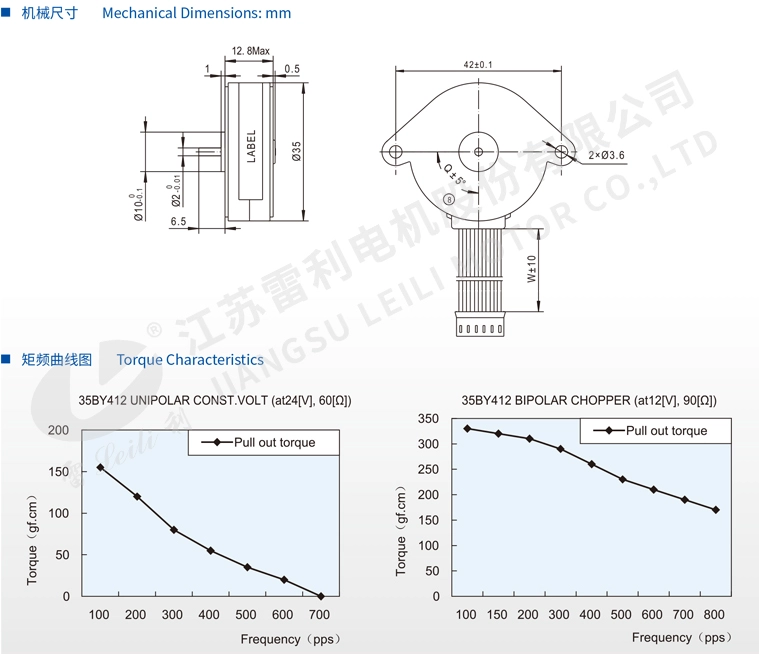

Mechanical Dimensions: mm
