RS-9712SH Micro DC Brush Motor
Product Introduction
- Wide Operating Range: Functions effectively between 90~150V, ensuring adaptability for various applications.
- High-Speed Performance: No-load speed reaches 10,000 r/min, with 8,800 r/min at maximum efficiency.
- Strong Torque Output: Delivers 168.78 mN·m (1722.24 g·cm) torque, supporting high-power demands efficiently.
Product Application
- Home appliances
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||||||
| Operating Range |
Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||||
| V | V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | ||
| RS-9712SH | 2750 | 90~150 | 120 | 10000 | 0.25 | 8800 | 1.8 | 168.78 | 1722.24 | 155.87 | 1378.8 | 14069.4 | 12.85 |

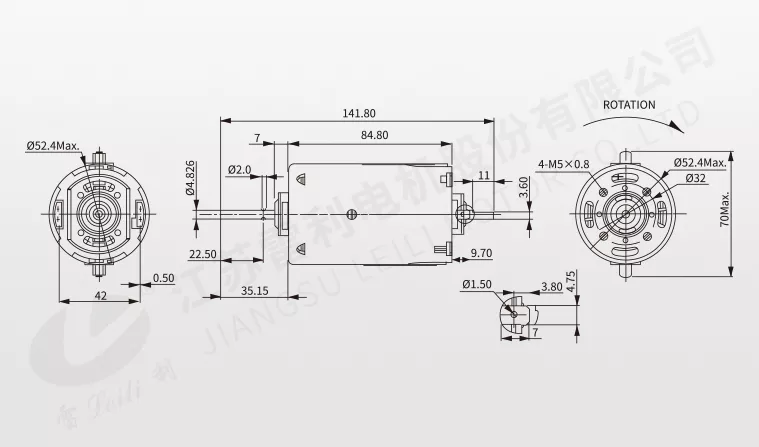

Mechanical Dimension: mm
