RS-557PH Micro DC Brush Motor
Product Introduction
- Versatile Voltage Range: Operates efficiently between 12~30V, ensuring adaptability for various applications.
- Stable Performance: No-load speed of 4,800 r/min, with 4,200 r/min at maximum efficiency.
- Reliable Torque Output: Delivers 30 mN·m (306 g·cm) torque, ensuring consistent and efficient power delivery.
Product Application
- Household appliance
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range |
Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| V | V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |
| RS-557PH-1 | 12~30 | 24 | 4800 | 0.14 | 4200 | 0.7 | 30 | 306 | 13.3 | 254.2 | 2592 | 4.8 |

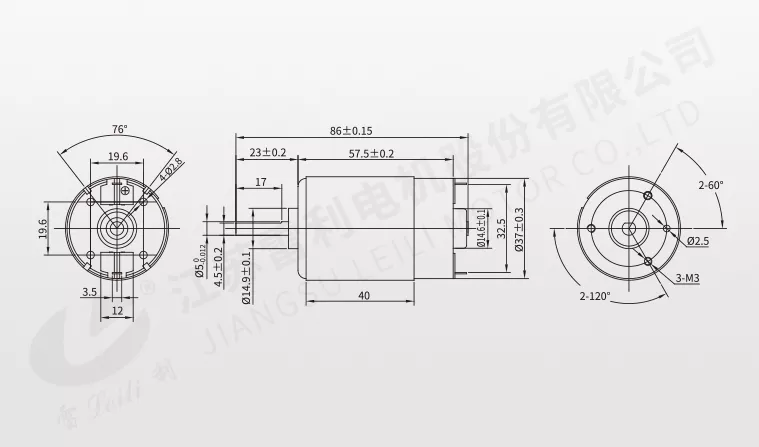

Mechanical Dimension: mm

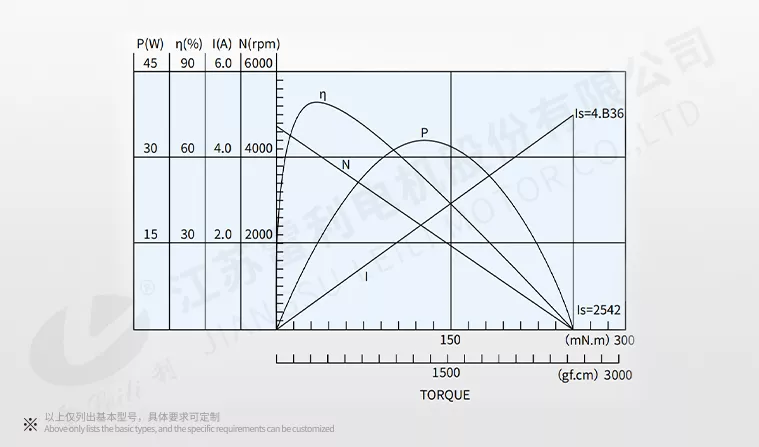

Motor Torque Curve
