RS-548SH Micro DC Brush Motor

RS-548SH Micro DC Brush Motor

Product Introduction

  • Wide Voltage Range: RS-548SH operates from 6.5V to 16V, delivering stable performance across various applications.
  • Efficient Performance: Runs at 6100 RPM unloaded, 4764 RPM at max efficiency, with 35 mN·m torque output.
  • Reliable Power: Provides 17.476W output, handling up to 160 mN·m stall torque for demanding applications.

Product Application

  • Automobile: Automobile throttle valve

Product Parameters

Model Vol No-Load Max Stall
Working range
(V)
Rated
(V)
Speed
(r/min)
Current
(A)
Speed
(r/min)
Current
(A)
Torque
(mN.m)
Torque
(g.cm)
Output
(W)
Torque
(mN.m)
Torque
(g.cm)
Current
(A)
RS-548SH 6.5-16 13.5 6100 0.55 4764 1.96 35 357.143 17.476 160 1632.65 7.00

Mechanical Dimension: mm

Mechanical Dimension for RS-548SH Micro DC Brush Motor

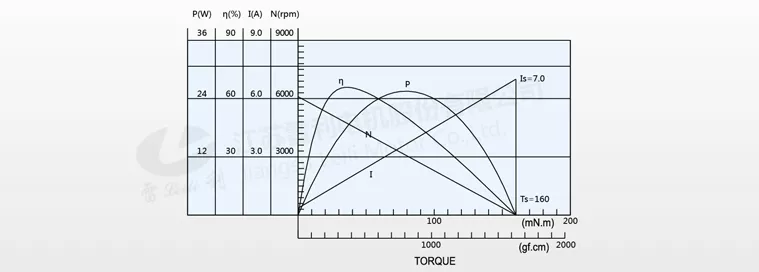

Performance Curves

Performance Curves for RS-548SH Micro DC Brush Motor
