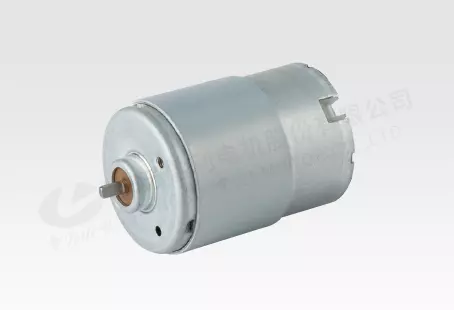

RS-545SH DC Brushed Gear Motor
Product Introduction
- Model: RS-545SH
- Performance: 12V rated voltage, no-load speed 3800±10%, load speed 2500±10% RPM, input power ≤6.6W.
- Efficiency: Low input current ≤0.5A, stable operation, supports load torque 28N·m with ≤2.0A current.
Product Application
- Home appliance gear pump
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage(VAC) | Input Current(mA) | No-load Speed(r/min) | Input Power(W) | Load 28N·m | |
| RS-545SH-11 | 12 | ≤0.5 | 3800±10% | ≤6.6 | Current(A)≤2.0A | Load Speed(RPM)2500±10% |

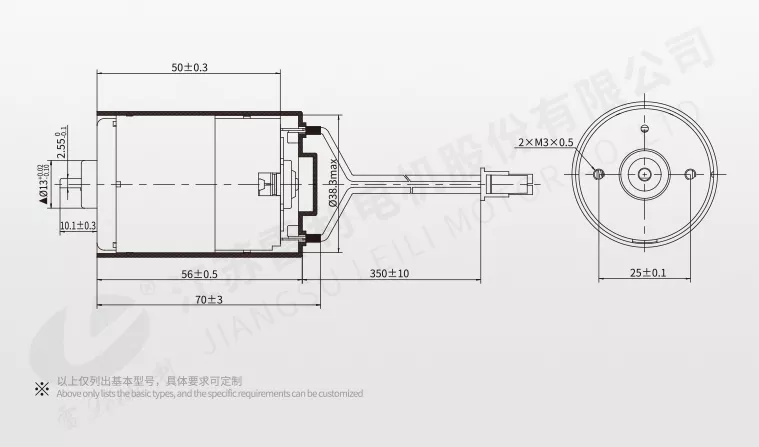

Mechanical Dimension: mm
