RS-5412SA Micro DC Brush Motor
Product Introduction
- RS-5412SA 08130: Operates at 50-160V, 5850 RPM unloaded, 4550 RPM at max efficiency, 17.85 mN·m torque.
- RS-5412SA 08256: Runs on 50-250V, 5850 RPM unloaded, 4710 RPM at max efficiency, 26.55 mN·m torque.
- RS-5412SA 1095: High-speed motor, reaching 15000 RPM unloaded, ideal for precision applications requiring stable performance.
Product Application
- Appliance: Vacuum cleaner
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com
Product Parameters
| Motor Type | Voltage | Unloaded | At Maximum Efficiency | Stall | |||||||||
| Scope of work | Rated | Speed | Electric current | Speed | Electric current (A) |
Torque (mN.m) |
Torque (g.cm) | Exportation (W) | Torque (mN.m) | Torque (g.cm) | Electric current (A) |
||
| (V) | (V) | (r/min) | (A) | (r/min) | |||||||||
| RS-5412SA | 8130 | 50-160 | 75 | 5850 | 0.05 | 4550 | 0.17 | 17.85 | 182.14 | 8.54 | 77.19 | 787.65 | 0.58 |
| RS-5412SA | 8256 | 50-250 | 150 | 5850 | 0.03 | 4710 | 0.13 | 26.55 | 270.92 | 13.12 | 137.1 | 1399 | 0.52 |
| RS-5412SA | 1095 | 50-150 | 120 | 15000 | 0.09 | 12319 | 0.42 | 18.77 | 191.53 | 24.21 | 105 | 1071.43 | 1.9 |

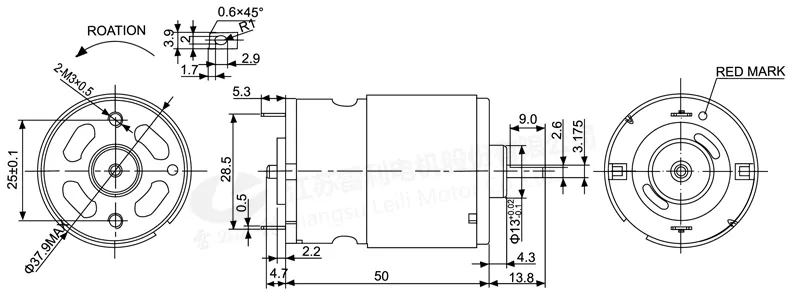

Mechanical Dimension: mm

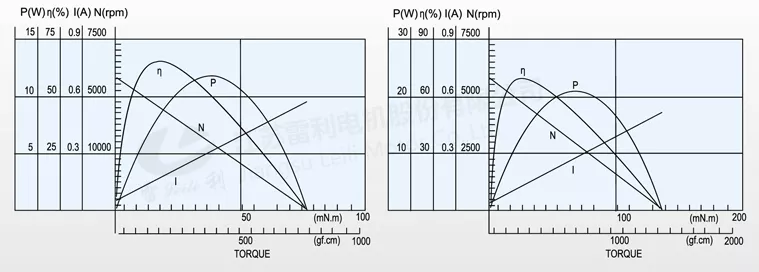

Performance Curves
