RF-500TB Micro DC Brush Motor
Product Introduction
- Model: RF-500TB
- Versatile Voltage Range: Operates efficiently from 1.5V to 9.0V, with a nominal 5V rating.
- Smooth Performance: Achieves 3100 r/min no-load speed with a low current draw of 0.026A.
- Efficient Torque Output: Delivers 1.23 mN·m torque at 2540 r/min with 0.12A maximum efficiency current.
Product Application
- Industry: Audiovisual equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range |
Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| V | V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |
| RF-500TB-14415 | 1.5~9.0 | 5 | 3100 | 0.026 | 2540 | 0.12 | 1.23 | 12.6 | 0.33 | 6.86 | 70 | 0.54 |

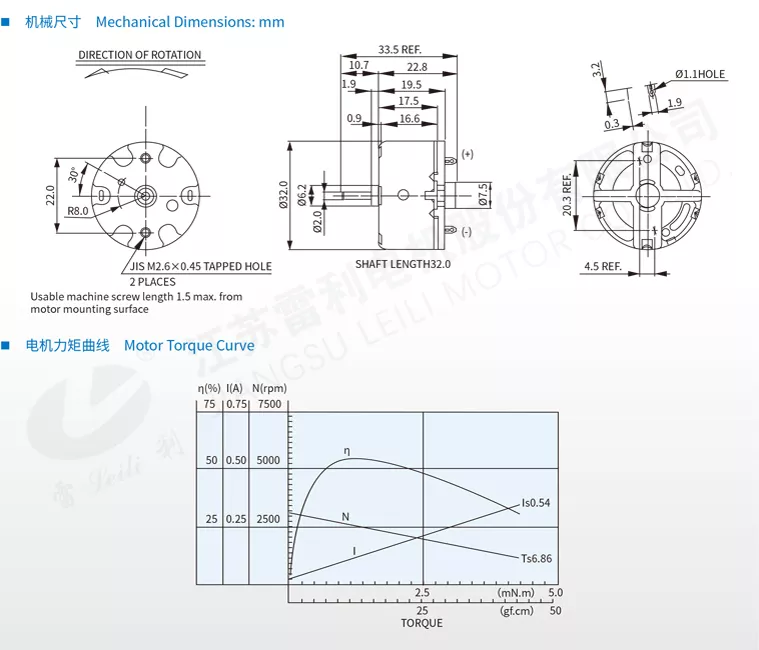

Mechanical Dimension: mm
