Refrigerator Door Opening Mechanism
Product Introduction
- Smooth Operation: Quiet performance with ≤65 dB(A) noise, ensuring unobtrusive, reliable door opening.
- Powerful Thrust: Ejector provides ≥350 N thrust and ≥7 mm stroke for robust, efficient movement.
- Compact Design: Optimized components deliver consistent performance while maintaining a compact form for seamless integration.
Product Application
- Smart appliances
- Refrigerator
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Protection Class |
Rated Voltage (VAC) |
Motor Rated Current （A） |
Door Opening Angle （°） |
Maximum Thrust of Ejector (N) |
Ejector Push Stroke (mm) |
Maximum Thrust of Connecting Rod Assembly (N) |
Noise dB(A) |
| BKMJ2-1 | 130 | 12 | ≤0.8 | 110±5 | ≥350 | ≥7 | ≥300 | ≤65 |
| BKMJ2-2 | 130 | 12 | ≤0.8 | 110±5 | ≥350 | ≥7 | ≥300 | ≤65 |

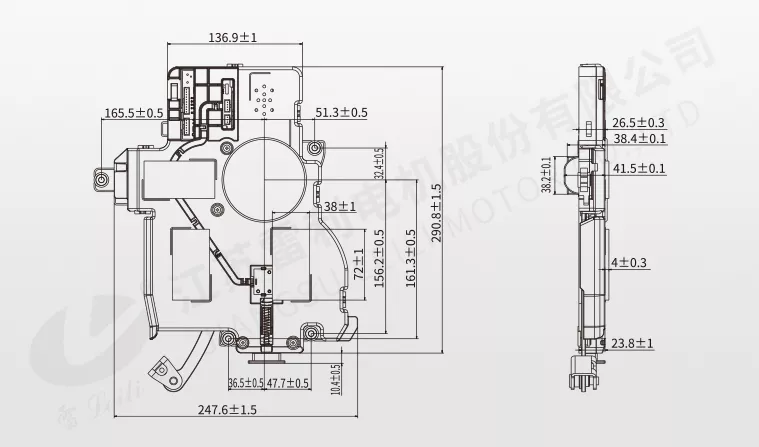

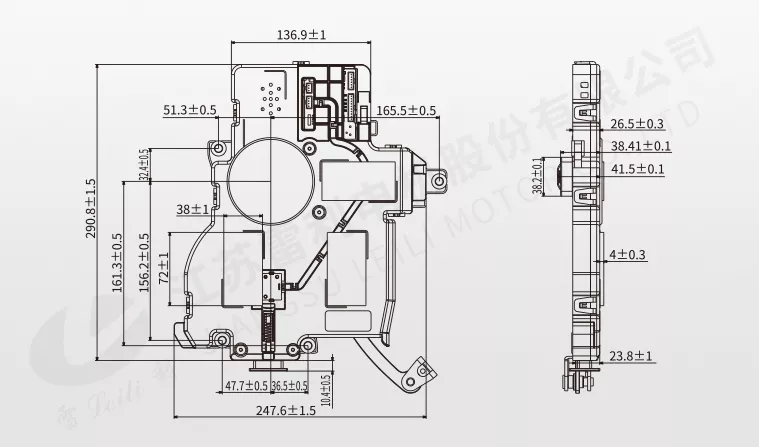

Mechanical Dimensions: mm
