QE2 Drain Motor
Product Introduction
- Performance & Power: The QE2 Drain Motor operates at 220/240V, 50/60Hz, with power consumption ≤3.5W-4.5W.
- Efficiency & Durability: Low current draw (≤20-25mA), insulation level E, noise ≤55A, and starting voltage ≤176V.
- Traction & Size: Provides 29.4-35.28N traction, 61mm±0.3-0.5 size, and ensures reliable 20mm distance movement.
Product Application
- Home appliances: washing machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Vol (V) |
Freq (Hz) |
Current (mA) |
Power (W) |
Distance (mm) |
Starting vol (VAC) |
Noise (A) |
Size (mm) |
Traction (N) |
Insulation Level |
| QE2-1 | 220/240 | 50/60 | ≤20 | ≤3.5 | 20 | ≤176 | ≤55 | 61±0.5 | 29.4 | E |
| QE2-4 | 220/240 | 50/60 | ≤25 | ≤4.5 | 20 | ≤176 | ≤55 | 61±0.3 | 35.28 | E |

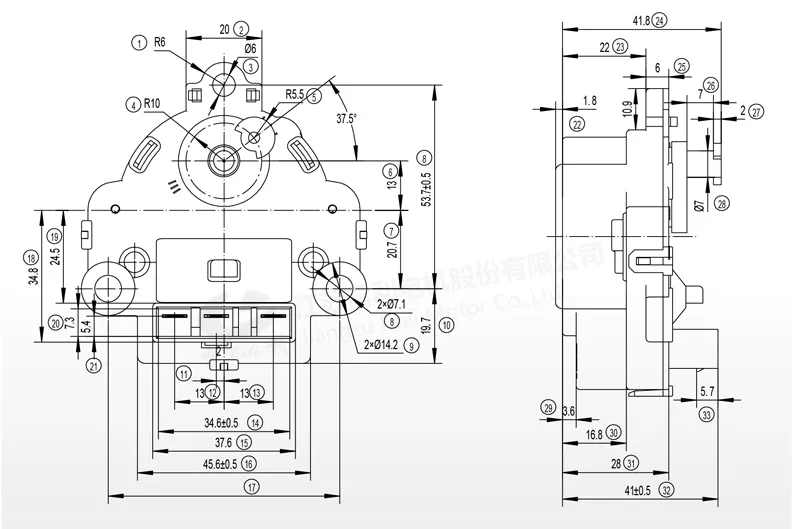

Mechanical Dimension: mm
