QA2 Drain Motor
Product Introduction
- Power Efficiency: Operates at 220/240V, 50/60Hz, with ≤30mA current and ≤4W power consumption.
- Structural Design: Features 23±1mm stroke, 75±0.25mm installation size, and ≤176V starting voltage.
- Reliable Performance: Ensures ≤55dB noise, 58.8N stretch load, and insulation class E for durability.
Product Application
- Home appliances: washing machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage(V) | Rated Frequency(Hz) | Input Current(mA) | Inptu Power(W) | Operating Stroke(mm) | Starting Voltage(V) | Noise dB(A) | Installation Size(mm) | Stretch Load(N) | Insulation Class |
| QA21 | 100/120 | 60 | ≤ 70 | ≤ 4 | 23±1 | ≤ 85 | ≤ 55 | 79±0.3 | 98 | E |
| QA22 | 220/240 | 50/60 | ≤ 30 | ≤ 4 | 23±1 | ≤ 176 | ≤ 55 | 75±0.25 | 58.8 | E |

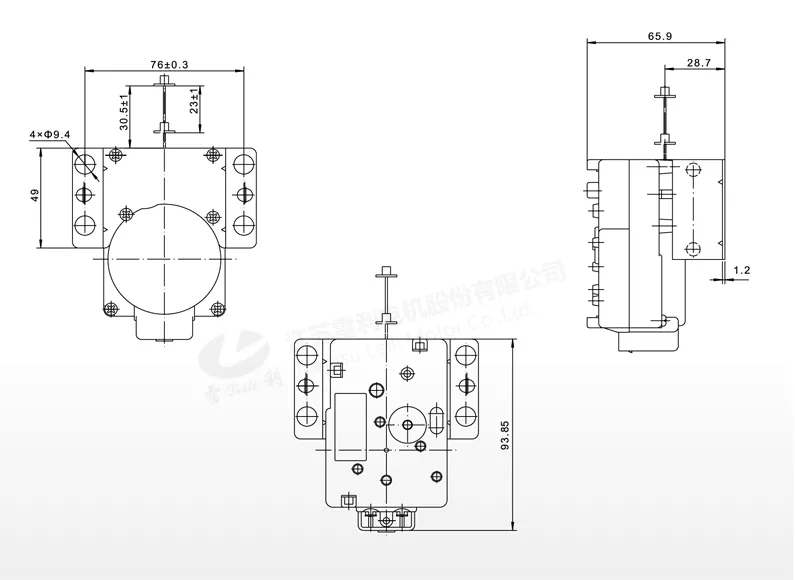

Mechanical Dimension: mm
