32BY46L PM Stepper Motor
Product Introduction
- Car air conditioning damper
- The 32BY46L motor features a 15° step angle, 12V, and 65 Ω coil resistance.
- It has 100MΩ insulation resistance, 500V dielectric strength, and Class E insulation rating.
Product Application
- Auto parts
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Step Angle | Drive Method | Drive Circuit | Drive Voltage (V) |
Coil Resistance/ Phase (Ω) |
Insulation Resistance |
Dielectnic Strength |
Class of Insulation (Class) |
| 32BY46L-1 | 15° | 2-2 Phase | UNIPOLAR | 12 | 65 | 100M [Ω] MIN | 500 (V) AC 1 (min) |
E |

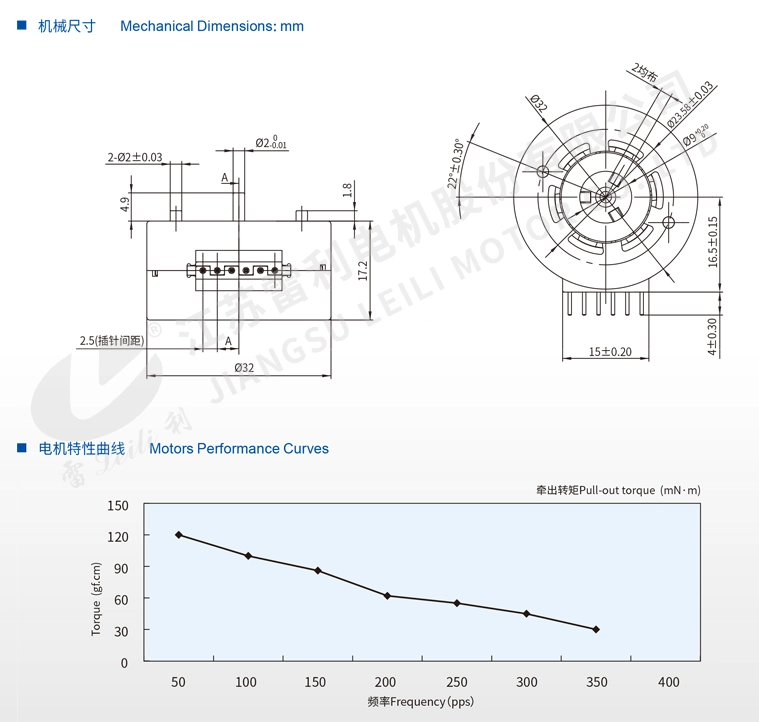

Mechanical Dimensions: mm
