N20 DC Brushed Gear Motor
Product Introduction
- Model: N20
- Performance: 12V, 230 RPM no-load, ≤1.2mA stall current, 0.111 reduction ratio, ensuring efficient operation.
- Load Capacity: Provides ≥78N·m stall torque, ensuring stable and reliable performance under demanding conditions.
- Power Efficiency: Low no-load current, minimal movement amount, optimized for precision applications with excellent durability.
Product Application
- Automobile: Vehicle fragrance system
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated Voltage | No-load Speed | No-Load Current | Stall Current | Stalling Torque | Withstand Voltage | Insulation Resistance | Movement Amount | Reduction Ratio |
| （V） | (RPM) | (mA) | (mA) | (N·m) | Leakage current is less than 2mA | (mm) | ||
| 12 | 230 | ≤ 0.07 | ≤ 1.2 | ≥ 78 | ★No breakdown or flashover | ≥ 10 | 0.00~0.3 | 0.111111111 |

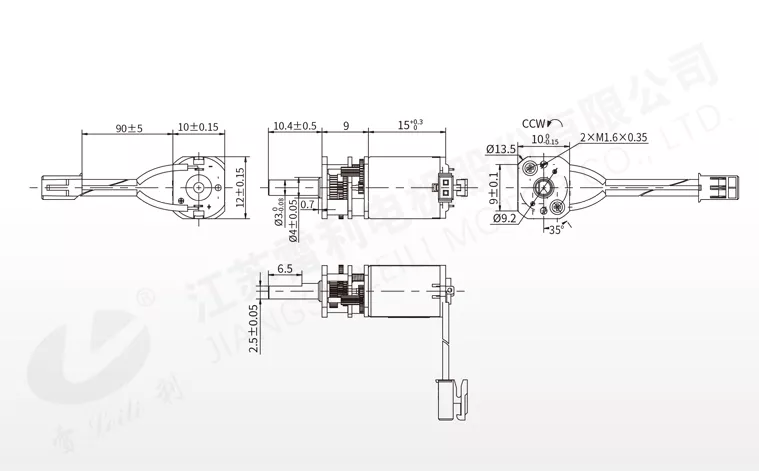

Mechanical Dimension: mm
