KDFJ2-1 Ventilation Module
Product Introduction
- The main function of the air deflector is to control the opening and closing of the big door plate of the cylinder cabinet machine
- Strong Torque: Provides ≥ 1.5kg pull-in torque at 250PPS, ensuring powerful and consistent performance.
- Precise Gear Alignment: Gear assembly maintains virtual position error ≤ 3°, delivering accurate motion control.
- Quiet and Clean Operation: Produces ≤ 40dB noise and adheres to strict cleanliness standards for appearance.
Product Application
- Home appliances: air conditioner
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Pull-in Torque 12V 250PPS |
Gear Assembly Gear Virtual Position |
Appearance Requirement | Noise dB(A) |
| ≥ 1.5kg | ≤ 3° | No oil or other stains | ≤ 40 |

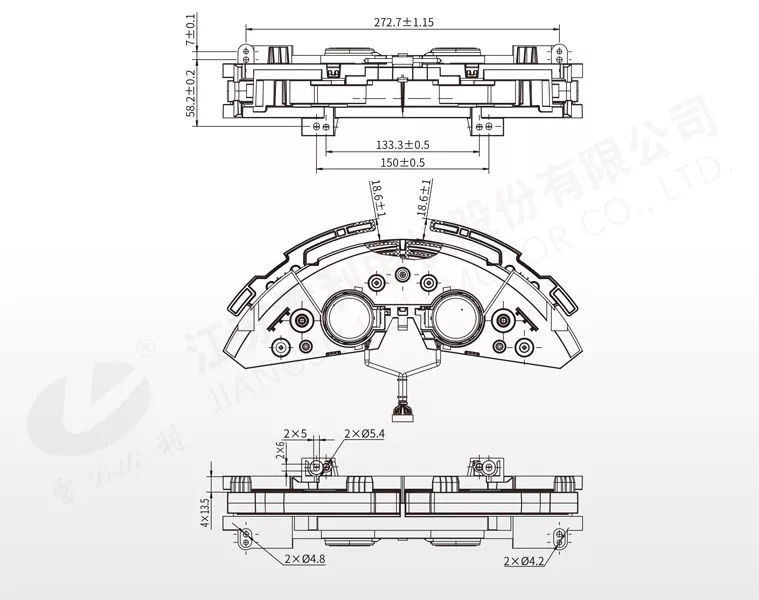

Mechanical Dimensions: mm
