KDFJ1-3 Ventilation Module
Product Introduction
- Air conditioner door panel air deflector
- 11V DC, 250pps, 18° output step angle, 250pps pull-in torque.
- Low-noise design ≤45dB, self-positioning torque provided, friction torque optimized for efficient operation.
Product Application
- Home appliances: air conditioning
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Voltage (VDC) |
Resistance (25℃ ) (Ω)±7％ |
Motor Output Step Angle |
Motor Reduction Ratio |
Gearbox Reduction Ratio |
Pull-in Torque (mN·m) 11(V) DC 250pps |
Self-positioning Torque (mN·m) |
Friction Torque (mN·m) |
Noise dB(A) |
| 12 | 130 | 7.5° /85.25 | 1/85.25 | 1/3.43 | ≥ 230 | ≥ 230 | 686 ～ 1700 | ≤ 40 |

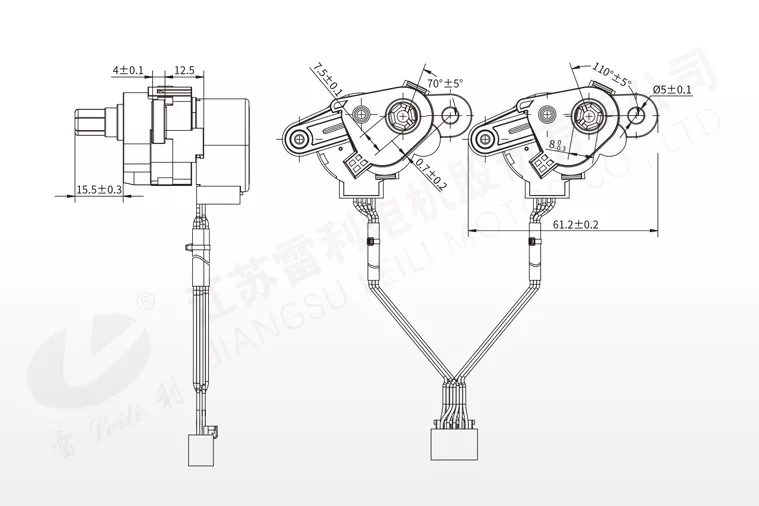

Mechanical Dimensions: mm
