Ice Crusher
Product Introduction
- Ice breaker used in refrigerator ice water system.
- Model: CLX-1A, CLX2-1A
- Windings Insulation Class: Rated H, ensuring excellent heat resistance and insulation.
Product Application
Appliance: Refrigerator
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Operating Voltage |
Frequency (Hz) |
Rated Speed (RPM) |
Rated Current (A) |
No-load Speed (RPM) |
No-load Power (W) |
Stall Torque (N·m) |
Stall Current |
Windings Insulation Class |
Certificate |
| CLX-1A | 120VAC(DC)±0.5V | 60±2 | 15±15% | ≤ 0.7 | 30±10%CW 31±10%CCW |
≤ 25 | 22.6+15%/-10% | ≤ 1.2A | H | UL, CSA |
| CLX2-1A | 220VAC(DC)±0.5V | 50±2 | 15±15% | ≤ 0.4 | 30±10%CW 31±10%CCW |
≤ 20 | 29.3+10%/-15% | ≤ 0.7A | H | CE |

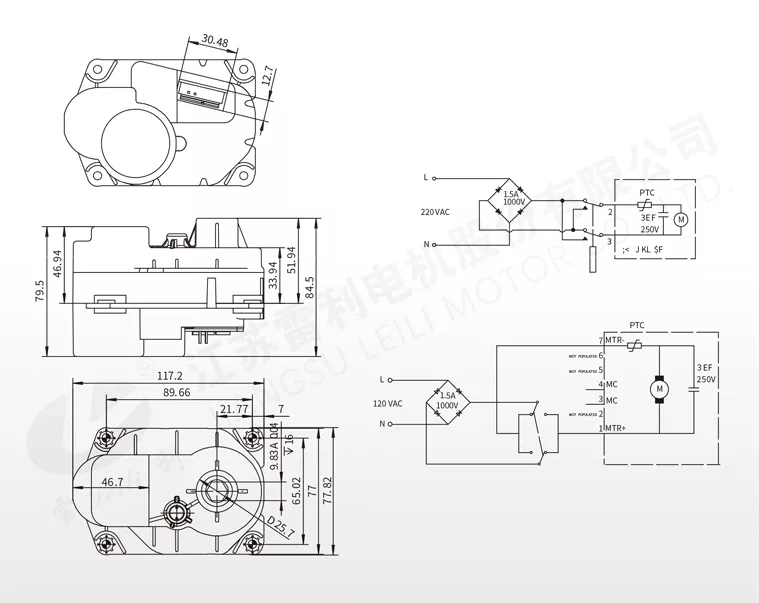

Mechanical Dimensions: mm
