FS-5710SH Micro DC Brush Motor
Product Introduction
- Model: FS-5710SH
- Wide Voltage Range: Operates between 8V-16.5V, with a rated voltage of 12V for versatile applications.
- High Performance: Delivers 4500 RPM at no load, 3800 RPM max with 50 mN·m torque output.
- Powerful & Efficient: Generates 19W output power, with a stall torque of 234 mN·m for demanding tasks.
Product Application
- Automobile: Automobile throttle valve
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Vol | No-Load | Max | Stall | ||||||||
| Working range (V) |
Rated (V) |
Speed (r/min) |
Current (A) |
Speed (r/min) |
Current (A) |
Torque (mN.m) |
Torque (g.cm) |
Output (W) |
Torque (mN.m) |
Torque (g.cm) |
Current (A) |
|
| FS-5710SH | 8-16.5 | 12 | 4500 | 2 | 3800 | 2.5 | 50 | 510 | 19 | 234 | 2387.8 | 10.5 |

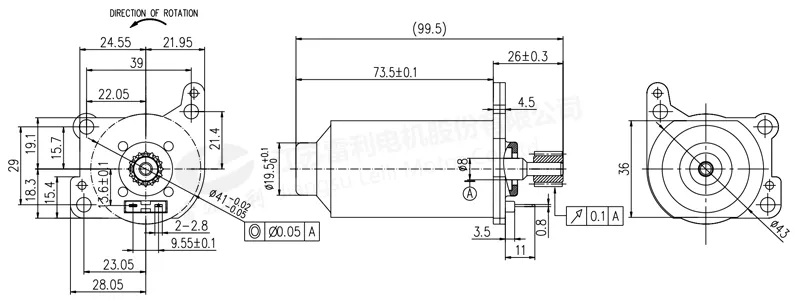

Mechanical Dimension: mm

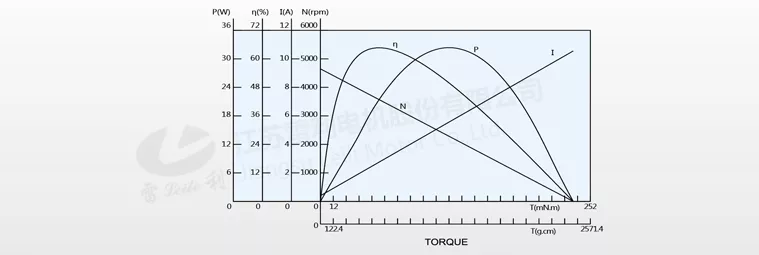

Performance Curves
