FGJ1-5 Flip Agencies
Product Introduction
- FGJ1-5 Flip Agencies is mainly used for smart toilet lid clamshell
- High Torque Performance: Achieves pull-out torque of ≥4 mN·m for reliable, powerful operation.
- Low Noise Operation: Maintains a quiet environment with noise levels ≤45dB measured at 30cm distance.
- Long Operating Life: Delivers a lifespan of 110,000 cycles, ensuring extended durability and consistent performance.
Product Application
Home appliances: smart sanitaryware
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage(VDC) | Pull-out Torque (mN·m)
(1000pps) |
Stall Current (A) |
Action Time (S) |
Chine Noise (mA) | Operating Life |
| FGJ1-5 | 12 | ≥ 4 | ＜ 2 | 2 | ≤ 45dB 30cm | 110000 cycles(open/shut 15s as 1 cycle) |

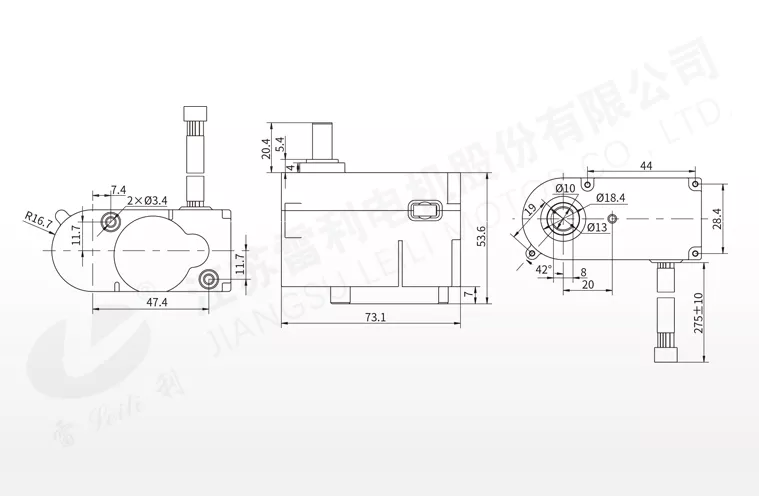

Mechanical Dimensions: mm
