EP11/12-x Electromagnetic Pump
Product Introduction
- Precise Flow Control: Delivers 50~250 ml/min flow rate with ±15% accuracy for consistent performance.
- Reliable Copper Winding: Features Class F insulation, ensuring durability and stable operation at 16W-18W power.
- Versatile Voltage Compatibility: Operates on AC120V 60Hz or AC220-240V 50Hz, adapting to various appliance requirements.
Product Application
- Appliance: Coffee machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Wire | Rated Voltags (VAC) |
Rated Frequency (Hz) |
Power (W) |
Current (A) |
Flow Rate (ml/min) |
Flow Accuracy (g) |
Insulation Class |
| EP12-x | Cu | 220-240 | 50 | 16 | 0.1 | 50~250 | ±15% | F |
| EP11-x | Cu | 120 | 60 | 18 | 0.16 | 50~250 | ±15% | F |

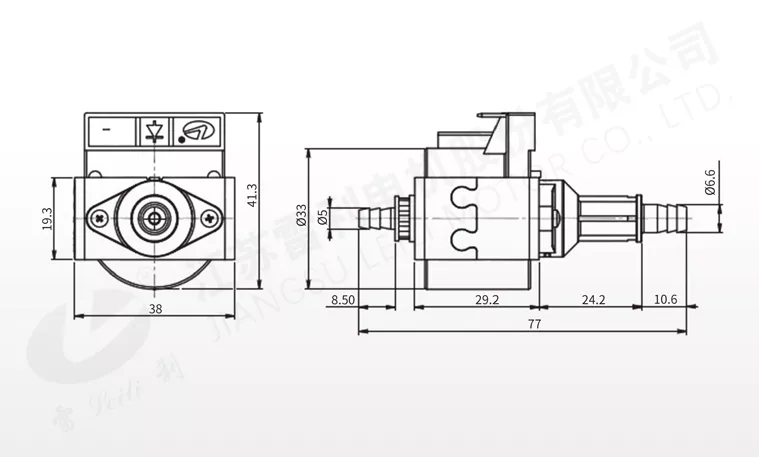

Mechanical Dimension: mm
