DP400W/50W Diaphragm Pump
Product Introduction
- High Pressure Performance: Delivers up to 70 PSI, ensuring efficient liquid transfer and strong operation.
- Energy Efficient Design: Runs on 24VDC or 36VDC, with a maximum stall current of 3.5A.
- Versatile Flow Rates: Provides ≥150-160 LPH (DP400W) and ≥35-37 LPH (DP50W) for various applications.
Product Application
- Home appliances: water purifier booster pump
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | L(mm) | Voltage (VDC) |
PSI | PSI (Max) |
Current (A) |
(LPH) | (Max)(℃ ) | PSI | Stall Current |
| DP400W-x | 215 | 24 | 30 | 70 | ≤ 2.5 | ≥ 150 | 55 | 140±10 | ≤ 3.5A |
| DP400W-y | 215 | 36 | 30 | 70 | ≤ 1.5 | ≥ 160 | 55 | 140±10 | ≤ 2.5A |
| DP50W-x | 195 | 24 | 30 | 70 | ≤ 0.9 | ≥ 35 | 55 | 120±10 | ≤ 1.3A |
| DP50W-y | 195 | 36 | 30 | 70 | ≤ 0.6 | ≥ 37 | 55 | 120±10 | ≤ 1.0A |

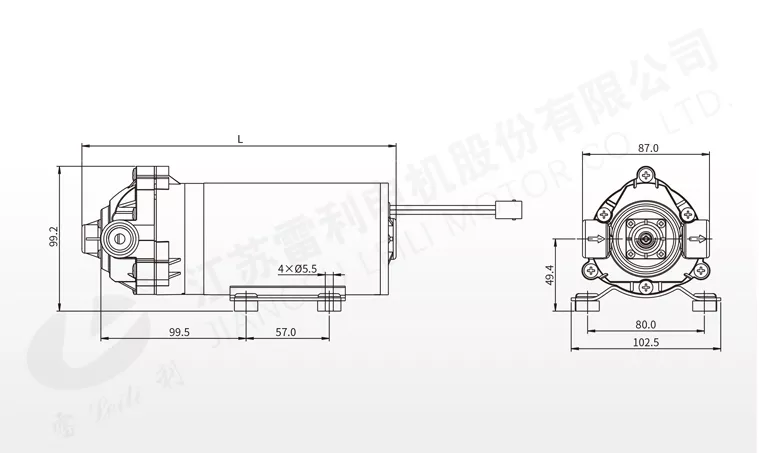

Mechanical Dimension: mm
