DP33 Diaphragm Pump
Product Introduction
- Efficient Performance: Operates at 24VDC, ≤150mA, ≤4W power, delivering 510±50 LPH with 360ml/min flow.
- Reliable Durability: Provides ≥600 hours of life-cycle, 5m lift capacity, and maintains noise levels ≤40 dB(A).
- Lightweight Design: Weighs only 66.5g, ensuring easy integration into compact systems and portable applications.
Product Application
- Appliances: Coffee maker, vacuum cleaner
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage(VDC) | Rated Current (mA) |
Rated Power (W) |
(LPH) ml/min |
5m Lift (M) |
Noise dB(A) |
Life-Cycle (h) |
Weight (g) |
| DP33-x | 24 | ≤ 150 | ≤ 4 | 510±50 | 360ml/min | ≤ 40 | ≥ 600 | 66.5 |

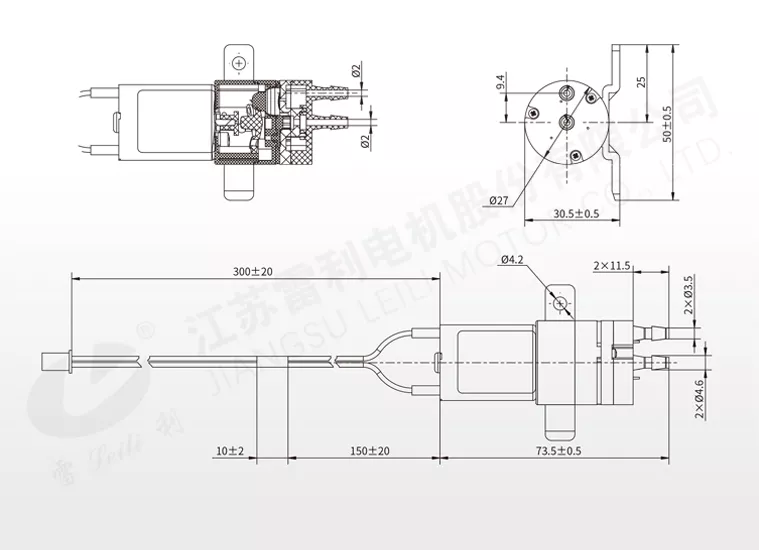

Mechanical Dimension: mm
