Door Lock Motor
Product Introduction
- Door lock motor
- Electrical Performance: Rated 120V, 60Hz frequency, 2 RPM rotational speed, insulation class N (DLA-3) or F (DLA-6).
- Mechanical Features: Opening and closing time 15±0.5s, mounting hole spacing 60.3±0.1mm (DLA-3) or 60.5±0.15mm (DLA-6).
- Durability & Reliability: DLA-3 operates normally at 200°C for 6000 cycles, and DLA-6 withstands 1.46 million cycles at 136°C.
Product Application
- Appliances: Oven, microwave
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor type | Rated Voltage (V) | Frequency (Hz) |
Rotational Speed (RPM) | Insulation Class | Opening and Closing Time | Mounting Hole Spacing (mm) | Service Life |
| DLA-3 | 120 | 60 | 2 | N | 15±0.5s | 60.3±0.1 | At 200 ° C, 6000 cycles of continuous operation are normal |
| DLA-6 | 120 | 60 | 2 | F | 15±0.5s | 60.5±0.15 | At 136℃, the rated load, continuous operation of 1.46 million cycles without abnormal |

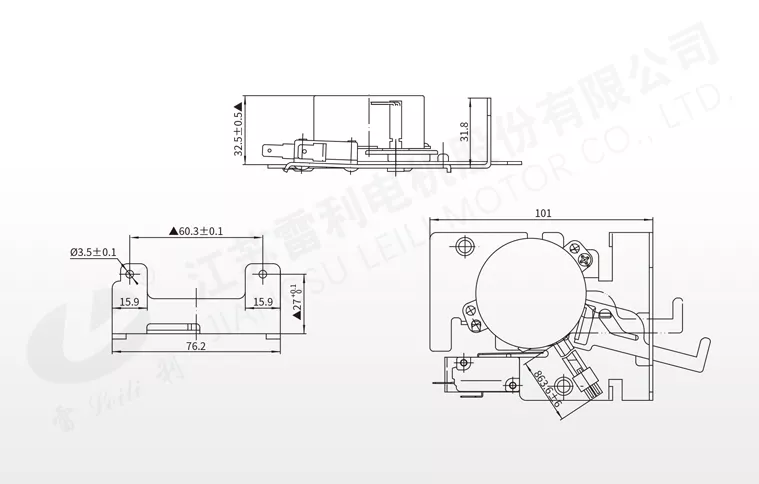

Mechanical Dimension: mm
