DCF Valve Actuator
Product Introduction
- This product is mainly used for valve control in heating equipment.
- Working Water Temperature: 5°C to 88°C, adaptable to a wide range of water temperatures.
- Rated Frequency: 6/5 Hz, providing stable performance for various operating conditions.
- Noise Level: ≤ 50 dB(A), operating quietly for reduced noise pollution.
Product Application
- Industrial solutions
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Volted (V) |
Rated Frequency (Hz) |
Input Power (W) |
Starting Voltage (VAC) |
Temperature Rise (K) |
Noise dB (A) |
Working Water Temperature (℃ ) |
Flow (m³/h) |
Water Pressure (Bar) |
Open Time (s) |
Close Time (s) |
Insulation Class |
| DCF | 24 | 50/60 | 6/5 | ≤ 18 | ≤ 80 | ≤ 50 | 5/88 | 2 | 1 | 20 | 10 | F |
| 120 | 50/60 | 6/5 | ≤ 85 | ≤ 80 | ≤ 50 | 5/88 | 2 | 1 | 20 | 10 | ||
| 220 | 50/60 | 6/5 | ≤ 180 | ≤ 80 | ≤ 50 | 5/88 | 2 | 1 | 20 | 10 |

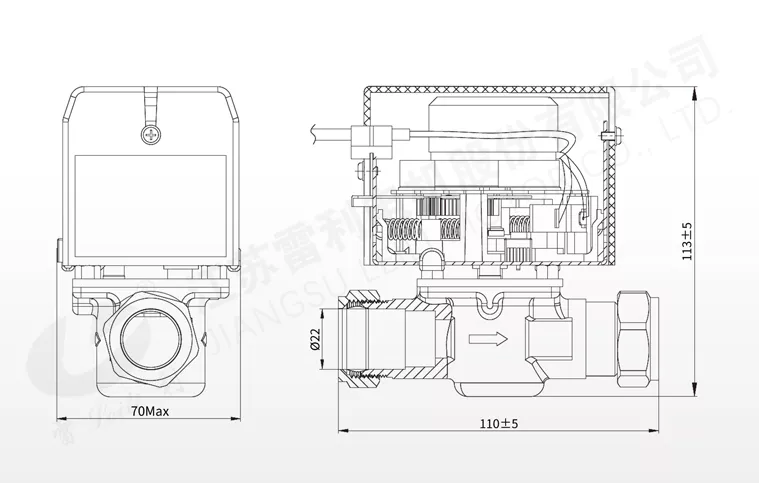

Mechanical Dimensions: mm
