DC Drain Motor
Product Introduction
- Reliable & Efficient: Meets AC drainage motor standards while ensuring stable performance under DC input requirements.
- Enhanced Durability: Brush DC motor + turbo worm transmission offers superior reliability over market alternatives.
- Optimized Performance: Low starting voltage, high insulation resistance, and reduced noise for long-lasting operation.
Product Application
- Home appliances: washing machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated Voltage (V) | Starting Voltage (V) | Rated Current (mA) | Rated Power (W) | ★ Insulation Resistance |
★ Insulation withstand Voltage |
★ Leakage Current |
Insulation Class | Temperature Rise (K) | Tractive Effort
Rated Voltage Hour (N) |
Traction Time (s) | Restoring Force (N) | Recovery Time (s) | Maintenance Power (N) | Noise （dB） |
| DC12 | ≤ 10.2 | ≤ 0.5 | ≤ 6 | ≥ 100 | AC1500 1min, 0.5mA |
≤ 0.25 | E | ≤ 75 | ≥ 98 | ≤ 7 | ≤ 9.8 | ≤ 1 | ≥ 117.6 | ≤ 50 |

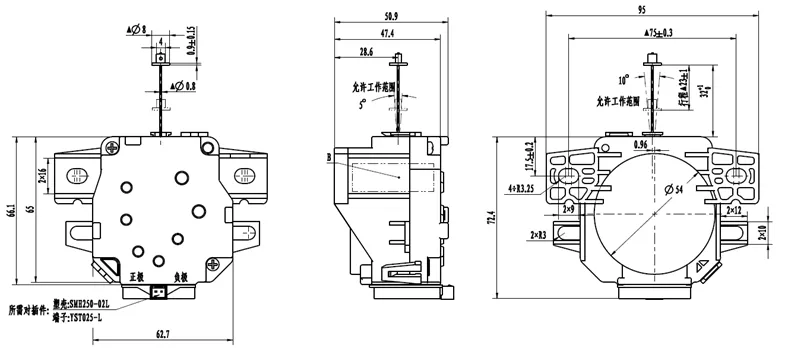

Mechanical Dimension: mm
