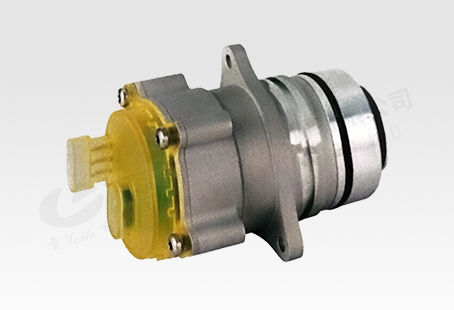

DC Brushless Pump 500W Electronic Oil Pump

DC Brushless Pump 500W Electronic Oil Pump

Product Introduction

  • High-Efficiency Performance: 12V operation, 5000 RPM range, 3-phase motor with sensorless control.
  • Durable & Reliable: Continuous operation, 6-pole 9-slot design, IP6K9K/IP68 protection for harsh environments.
  • Advanced Control: Sensorless control method ensures smooth and efficient oil pumping performance.

Product Application

  • Automotive: Electric Drive Transmission System

Product Parameters

Voltage Range Rated Operating Voltage Range of Rotation Rated Speed Motor Phases Number of Poles Control Method Operation Mode Protection Class
9 ~ 16(V) 12(V) 5000(RPM) 4500(RPM) 3(phase) 6-pole 9-slot Sensorless control Continuous work IP6K9K / IP68

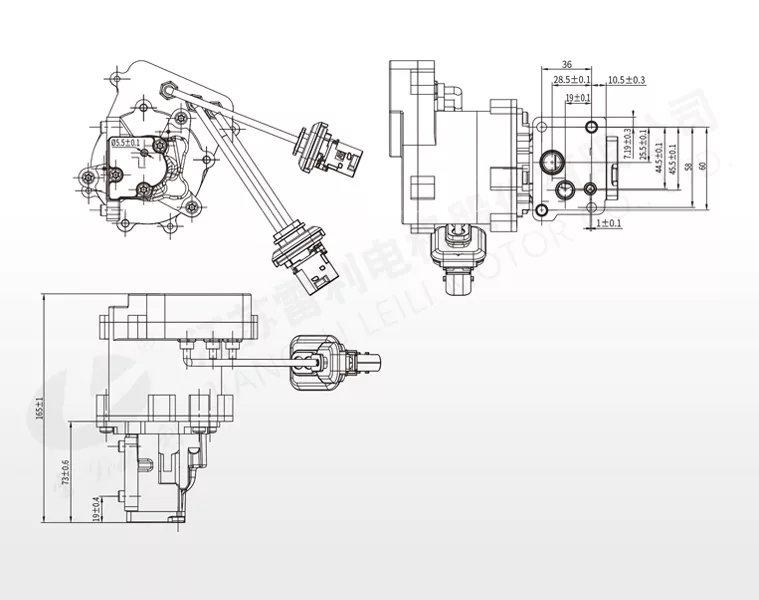

Mechanical Dimension: mm

Mechanical Dimension for DC Brushless Pump 500W Electronic Oil Pump
