Inner Rotor Brushless DC Motor Electric Roller
Product Introduction
- Electric roller
- Compact 3-phase servo motors with 4 poles, 24VDC rating, and speeds up to 5000 RPM.
- High torque output reaching 28 Nm maximum, with E-class insulation and 45 kg·cm inertia for stability.
Product Application
- Supermarket checkout, packaging equipment, belt conveyor line
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor type | Phase Number | Number of Poles | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (N·m) | Maximum Torque | Back Potential Coefficient | Insulation Class | Moment of Inertia (kg·cm) |
| DDGT4401 | 3 | 4 | 24 | 1500 | 0.14 | 20 | 2 | E | 45 |
| DDGT4402 | 3 | 4 | 24 | 5000 | 0.04 | 20 | 5.5 | E | 45 |
| DDGT4403 | 3 | 4 | 24 | 2400 | 0.12 | 28 | 3 | E | 45 |
| DDGT4404 | 3 | 4 | 24 | 5000 | 0.06 | 28 | 6 | E | 45 |

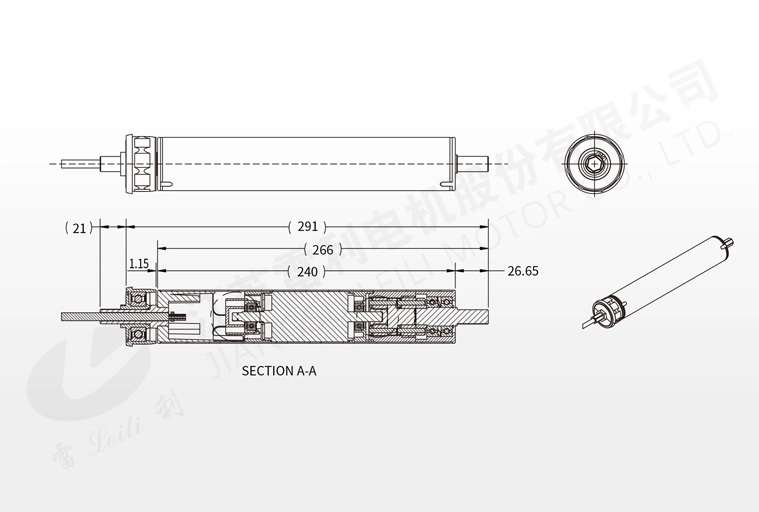

Mechanical Dimensions: mm
