BPX201/202 AC Synchronous Drainage Pump
Product Introduction
- Motor Specifications: Copper or aluminum coil, 20mm rotor, 110-240V voltage, 50/60Hz frequency, Class F insulation, durable design.
- Performance Characteristics: 17L/min flow rate, 1M head, 40W power, 3000-3600 r/min speed, ensuring stable and efficient drainage.
- Electrical Properties: 0.35A current, 102-187V starting voltage, delivering reliable operation with low energy consumption.
Product Application
- Appliances: washing machine, dishwasher, humidifier, foot bath
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com
Product Parameters
| Motor Type | Coil | Rotor (mm) |
Rated Voltage (V) | Rated Frequency (Hz) | Power (W) |
Electric Current (mA) | Starting Voltage （V） | Head (M) |
Flow Rate （L/min） | Rotational Speed (r/min) | Insulation Class |
| BPX201-x | Cu | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX201-xL | Al | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX202-x | Cu | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-xL | Al | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-x | Cu | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |
| BPX202-xL | Al | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |

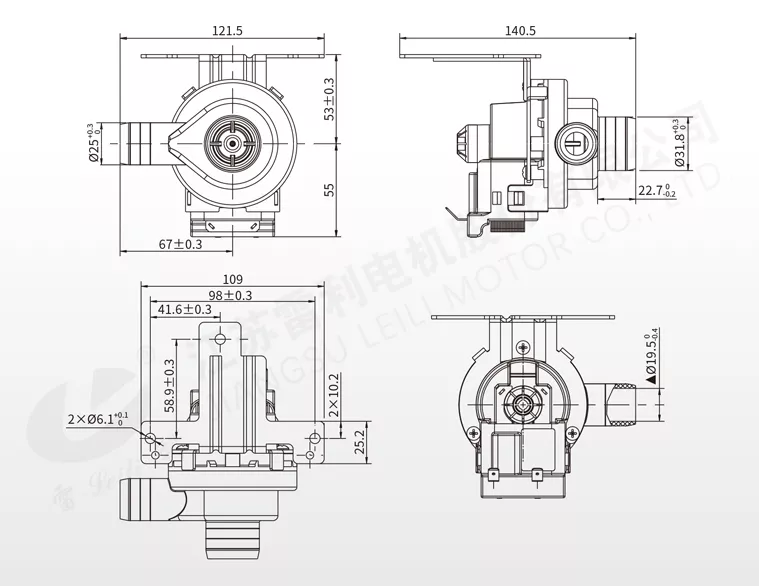

Mechanical Dimension: mm
