BPX1/2 AC Synchronous Drainage Pump
Product Introduction
- Motor Specifications: Copper or aluminum coil, 25mm stator, 110-240V voltage, 50/60Hz frequency, Class F insulation.
- Performance Characteristics: 17L/min flow rate, 1M head, 30-35W power, 3000-3600 r/min speed, reliable drainage.
- Electrical Properties: 0.3-0.6A current, 102-187V starting voltage, ensuring efficient and stable operation.
Product Application
- Appliances: dishwasher, washing machine, humidifier, foot bath
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor Type | Coil | Stator
(mm) |
Rated Voltage
(V) |
Rated Frequency
(Hz) |
Power (W) |
Electric Current (mA) | Starting Voltage （V） | Head (M) | Flow Rate （L/min） | Rotational Speed (r/min) | Insulation Class |
| BPX1-x | Cu | 25 | 110-120 | 60 | 35 | 0.6 | 102 | 1 | 17 | 3600 | F |
| BPX1-xL | Al | 25 | 110-120 | 60 | 35 | 0.6 | 102 | 1 | 17 | 3600 | F |
| BPX2-x | Cu | 25 | 220-240 | 50 | 30 | 0.3 | 187 | 1 | 17 | 3000 | F |
| BPX2-xL | Al | 25 | 220-240 | 50 | 30 | 0.3 | 187 | 1 | 17 | 3000 | F |
| BPX2-x | Cu | 25 | 220 | 60 | 35 | 0.35 | 187 | 1 | 17 | 3600 | F |
| BPX2-xL | Al | 25 | 220 | 60 | 35 | 0.35 | 187 | 1 | 17 | 3600 | F |

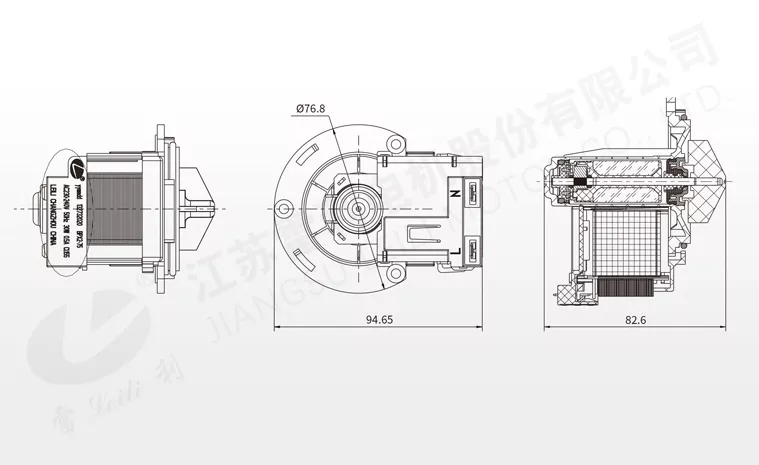

Mechanical Dimension: mm
