BLP300H High-pressure Electronic Water Pump
Product Introduction
- High-Performance Efficiency: 300W power, 2880L/h flow rate, 17.5m head, and PWM speed regulation.
- Durable & Reliable: Operates in -40℃ to +85℃, AC220V/380V, ≥20000h lifespan, and IP68 protection.
- Advanced Safety Features: Equipped with fault feedback, overcurrent, undervoltage, locked rotor, and reverse connection protection.
Product Application
- Energy storage
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Working Medium |
Ambient Temperature |
Medium Temperature |
Rated Voltage |
Weight | Lifetime | Protection Level |
Protection Function |
Special Functions |
Rated Power (W) |
Rated Parameter |
| BLP300H | Antifreeze | -40℃～+85℃ | -40℃～+85℃ | AC220V /380V |
2.3kg | ≥20000h | IP68 | Over/undervoltage, Locked rotor, reverseconnection, Overcurrent, idling |
Faultfeedback function, PWM Speedregulating function |
300W | Q=2880L/h, H=17.5m |

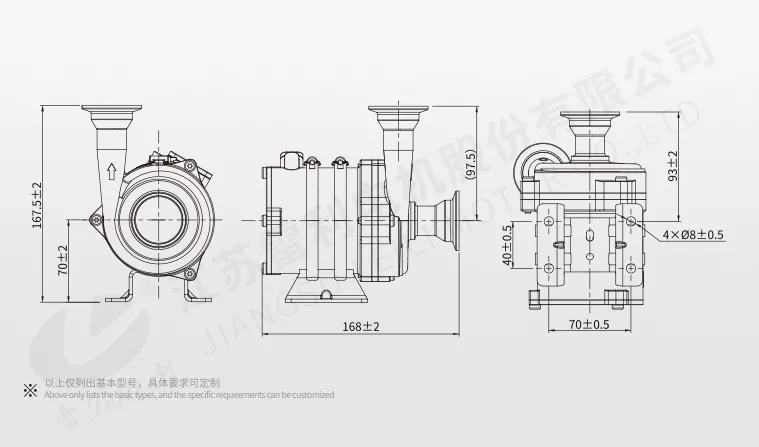

Mechanical Dimension: mm
Frequency-torque Characteristics
