BLP1500H High-pressure Electronic Water Pump
Product Introduction
- High-Pressure Performance: 1500W power, 12000L/h flow rate, 20m head, and high-voltage DC530V operation.
- Reliable & Long-Lasting: Operates in -40℃ to +85℃, 5kg weight, ≥20000h lifespan, and IP67 protection.
- Advanced Safety & Control: Equipped with CAN2.0, high-voltage interlock, overcurrent, reverse connection, and locked rotor protection.
Product Application
- Energy storage
- Hydrogen energy
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Working Medium |
Ambient Temperature |
Medium Temperature |
Rated Voltage |
Weight | Lifetime | Protection Level |
Protection Function |
Special Functions |
Rated Power (W) |
Rated Parameter |
| BLP1500H | Antifreeze | -40℃～+85℃ | -40℃～+85℃ | DC530V | 5kg | ≥20000h | IP67 | Over/undervoltage, Locked rotor, reverseconnection, Overcurrent, idling |
CAN2.0、 Highvoltage interlock function |
1500W | Q=12000L/ h, H=20m |

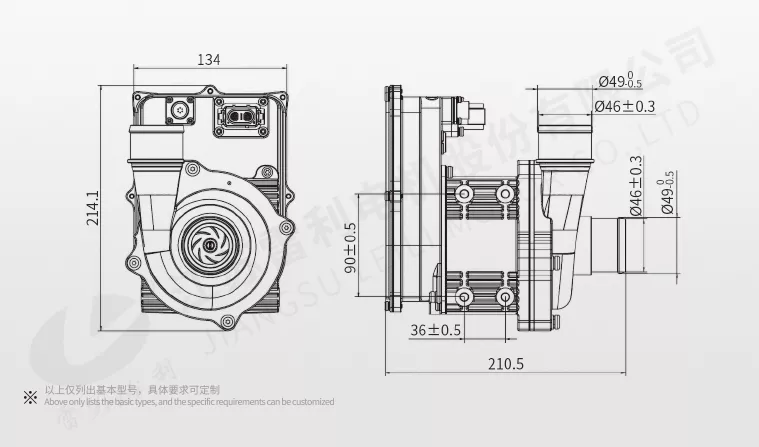

Mechanical Dimension: mm
