Base Size 30mm Voice Coil Motor
Product Introduction
- Sustained thrust of 4.63 N with peak thrust reaching 29.4 N for high performance.
- Back electromotive force constant of 7.35 V/m/s and coil resistance of 0.63 Ω.
- Coil weight is 25g, and the fuselage weight is 96g for robust design.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Journey (mm) |
Back Electromotive Force Constant (V/m/s) |
Sustained Thrust (N) |
Sustained Current Coil@100℃ | Peak Thrust (N) |
Resistance (Ω) |
Inductance (mH) |
Coil Clearance (mm) | Coil Weight (g) |
Fuselage Weight (g) |
| 13 | 7.35 | 4.63 | 0.63 | 29.4 | 10.2 | 2.63 | 0.6 | 25 | 96 |
| 13 | 7.35 | 4.63 | 0.63 | 29.4 | 10.2 | 2.63 | 0.6 | 25 | 96 |

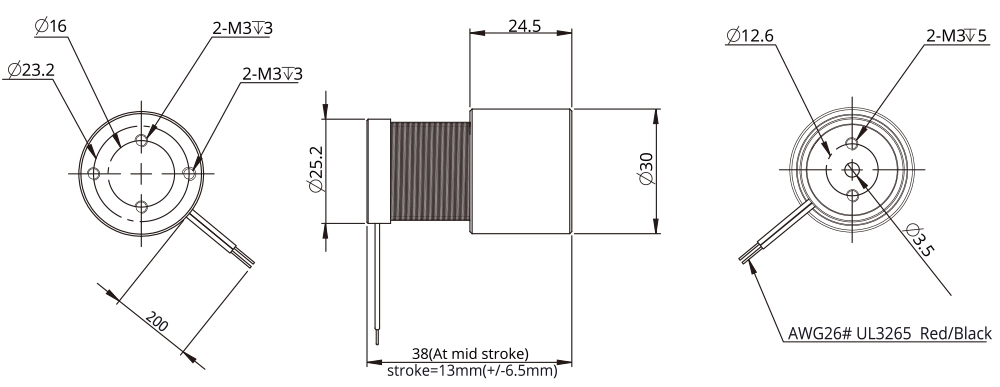

Mechanical Dimensions: mm
