B8421 Outer Rotor Brushless DC Motor
Product Introduction
- DC brushless motor B8421
- Rated power of 1000W and maximum power of 1900W for efficient performance.
- Designed for over 1000 hours of reliable operation with a no-load speed of 7,000 rpm.
Product Application
- Electro-hydraulic forklift truck
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage | No Load Speed | No Load Current | Rated Speed | Rated Power | Max. Power | Life |
| B8421 | 48V DC | 7,000 rpm ± 10% | 3.5A Max | 5300rpm ± 10% | 1000W | 1900W | ＞ 1000h |

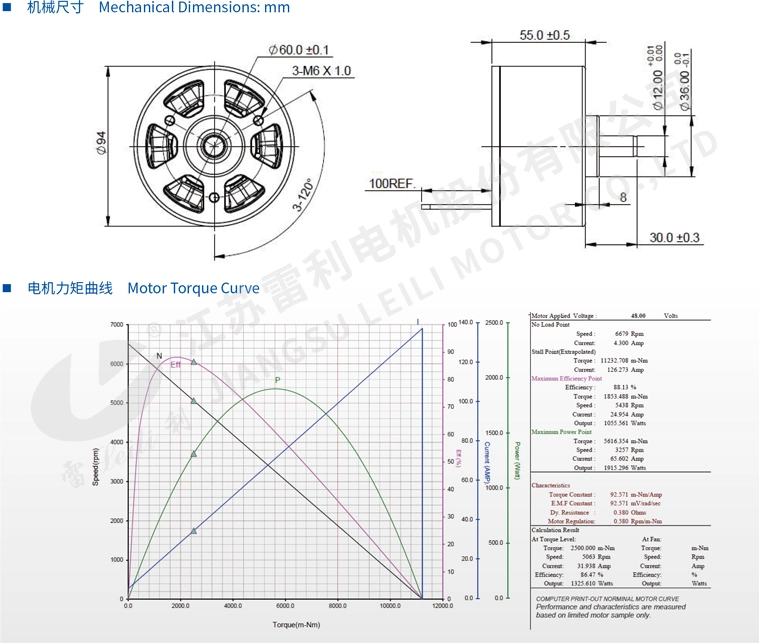

Mechanical Dimensions: mm
