B6025 Outer Rotor Brushless DC Motor

B6025 Outer Rotor Brushless DC Motor

B6025 Outer Rotor Brushless DC Motor

Product Introduction

  • No-load speed of 7500rpm and rated speed of 6200rpm for efficient operation.
  • Rated power of 130W with a maximum power of 260W for demanding applications.
  • Designed for over 1000 hours of reliable performance.

Product Application

  • Massager, electric fan, garden tools, air purifier
  • Warm Reminder:
  • The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Inquiry Now

Product Parameters

Model Rated Voltage No Load Speed No load Current Rated Speed Rated Power Max. Power Life
B6025 24VDC 7500rpm±10% 0.65A Max. 6200rpm±10% 130W 260W >1000h.

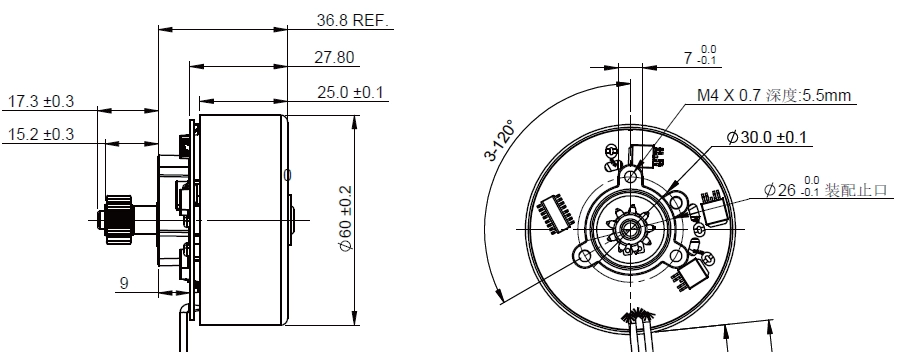

Mechanical Dimensions: mm

B6025 Outer Rotor Brushless DC Motor Dimensions
