B11030 Outer Rotor Brushless DC Motor
Product Introduction
- DC brushless motor B11030
- Rated power of 750W and maximum power of 1400W for reliable output.
- Designed for over 1500 hours of use with a no-load speed of 500 rpm.
Product Application
- Electric bicycle
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage | No Load Speed | No Load Current | Rated Speed | Rated Power | Max. Power | Life |
| B11030 | 48V DC | 500rpm ± 10% | 2.0A Max | 400rpm ± 10% | 750W | 1400W | ＞ 1500h |

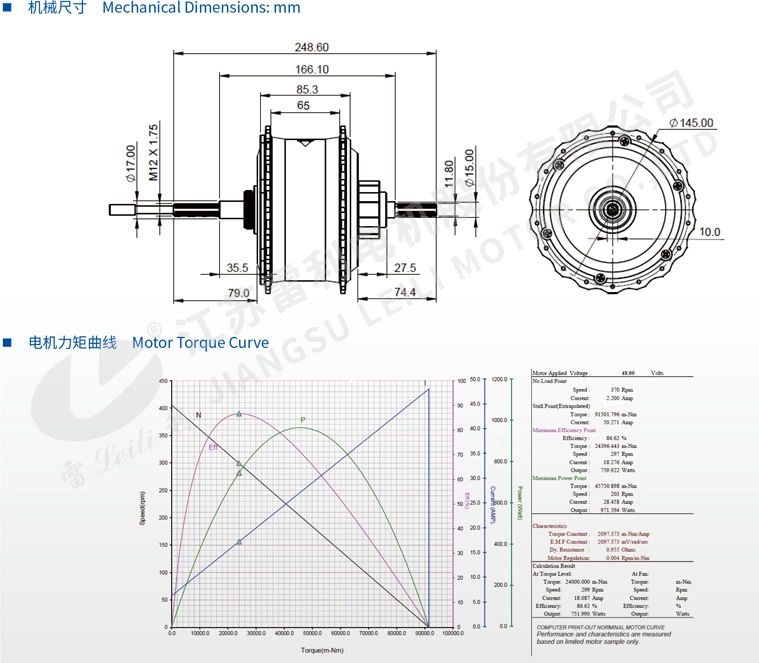

Mechanical Dimensions: mm
