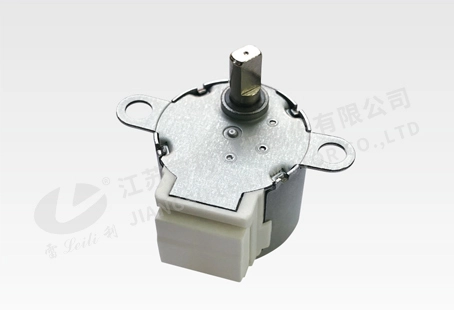

Automotive Electric Air Vents/Dampers 24BYJ48

Product Description
Model: 24BYJ48
The rotor of Leili permanent magnet stepping motor (BYJ series stepping motor) is made of permanent magnet material, and the number of poles of the rotor is the same as the number of poles of the stator. They are characterized by good dynamic performance and high output torque.
Application
Motorized air vents, air conditioning dampers
Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.


Availability:
Quantity:

PDF Export

  • Auto parts

  • 24

  • 11.25

  • 12

  • 101-200

  • 100

  • 1-100

Product parameter



Voltage

DC.V

Resistance Ω/ phase soil 7% (25℃) Output shaft step Angle Reduction ratio Pull in torque 100pps
(mN•m)

Self-positioning

torque

mN•m

No-load pull-in frequency

pps
No-load pull-out frequency pps ★ Insulation resistance DC500V
(MQ)

Temperature rise

 K

★ Dielectric strength of insulation AC 600V,
1mA, 1s
Noise
dB(A)
12 200 11.25° /64 1/64 ≥ 58.8 ≤ 19.6 ≥ 400 ≥ 500 ≥ 100 ≤ 45 No breakdown or flare ≤ 35

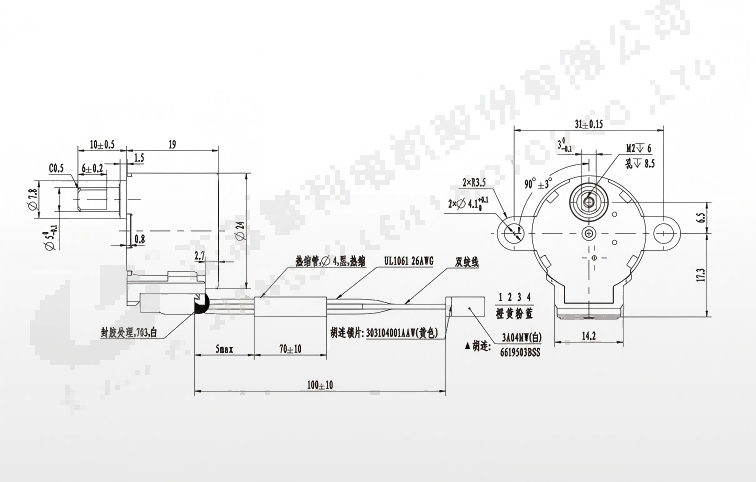

Mechanical dimension


24BYJ48
