AGS02 Stepper Motor Actuator

AGS02 Stepper Motor Actuator

Product Introduction

  • Suitable for automobile active intake grille
  • Motor Weight: Weighs 100 kg, ensuring stability in application.
  • Noise Level: Operates at <5 dB(A) at 100mm, ensuring ultra-quiet operation.
  • IP Code: Rated IP67, ensuring protection against dust and water ingress.

Product Application

  • Auto parts active intake grille

Product Parameters

Rated
Voltage
(V)
Input
Current
(mA)
Stall
Torque
(N·m)
Load
Rated SpeedM
(RPM)
Boost Mode
2.25RPM
Nm
Angle
Stroke
IP Code Communication Motors
Weight
(kg)
Noise
100mm
dB(A)
9~16 216 1.8 3 2.6 90掳 IP67 LIN 2. X 100 <5dB

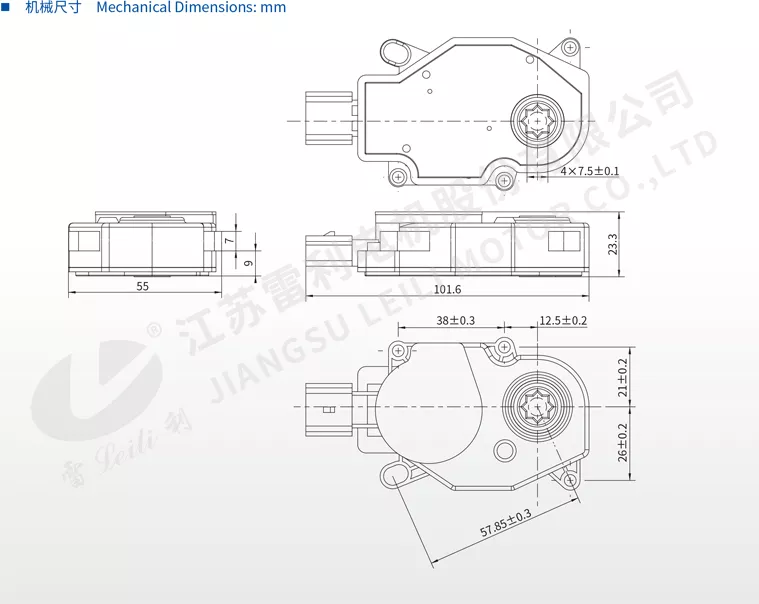

Mechanical Dimensions: mm

Mechanical Dimensions for AGS02 Stepper Motor Actuator
