90ZY PMDC Brushed Motor
Product Introduction
- Model:90ZY
- Electrical Performance: Operates at 24V with a KV value of 3600, ensuring stable and efficient operation.
- Power & Current: Delivers 250W output power with 15A current, providing reliable performance for treadmill applications.
- Efficiency & Torque: Achieves 76% efficiency with a rated torque of 0.75Nm for smooth and powerful motion.
Product Application
- Industrial: Industrial Controls
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage
(V)
|
Kv (V) |
No-Load Current (A) |
Rated Output Power (W) |
Current (A) |
Rated Torque (N.m) |
Efficiency | Insulation level | Motors Weight(kg) |
| 90ZY | 24 | 3600 | 1.0 | 250 | 15 | 0.75 | 76% | B | 3.5 |

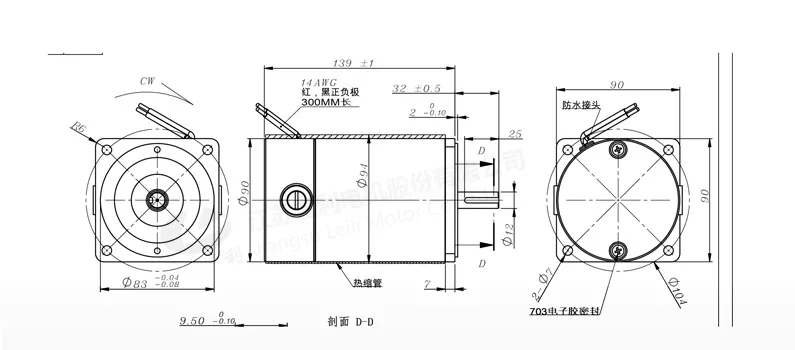

Mechanical Dimension: mm
