80ZY PMDC Brushed Motor
Product Introduction
- Model: 80ZY
- Efficient Performance: Delivers 110W power with 72% efficiency for reliable operation.
- Stable Torque: Provides a rated torque of 0.4 Nm with a steady 6.3A current for consistent output.
- Optimized Design: Features 24V voltage, 8.5 KV, and ≤1.5A no-load current for energy-saving performance.
Product Application
- Commercial Vehicle: Truck Lift
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage(V) | Kv (V/KRPM) | No-Load Current | Rated Output Power (W) |
Current(A) | Rated Torque (N·m) |
Efficiency | Insulation Class |
Motors Weight (kg) |
| 80ZY-1 | 24 | 8.5 | ≤ 1.5 | 110 | 6.3 | 0.4 | 72% | B | 2.5 |

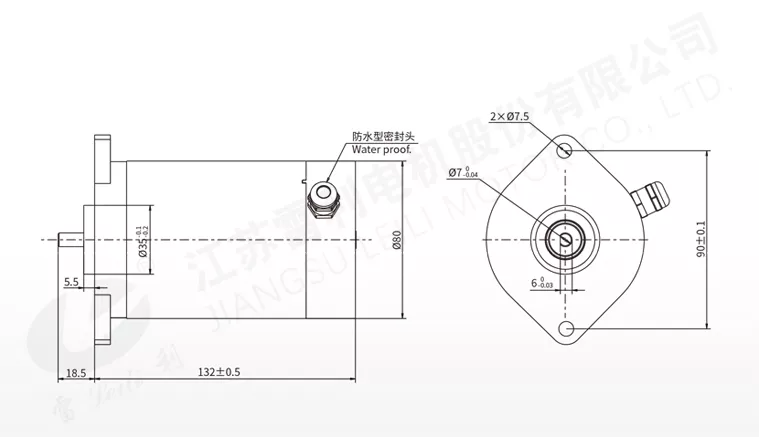

Mechanical Dimension: mm
