75WS Inner Rotor Brushless DC Motor
Product Introduction
- 75WS BLDC Motor
- Operates at 12VDC, achieving 3000 RPM no-load speed with 3A current for efficiency.
- Delivers up to 0.3 Nm torque at 2300 RPM, drawing 13A for powerful performance.
Product Application
- Automotive: Automotive vacuum pump
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Operating Voltage(VDC) | Torque(N.m) | Rotate Speed(RPM) | Current(A) |
| 12 | 0 | 3000±8% | 3 |
| 12 | 0.2 | 2500±8% | 8.5 |
| 12 | 0.3 | 2300±8% | 13 |

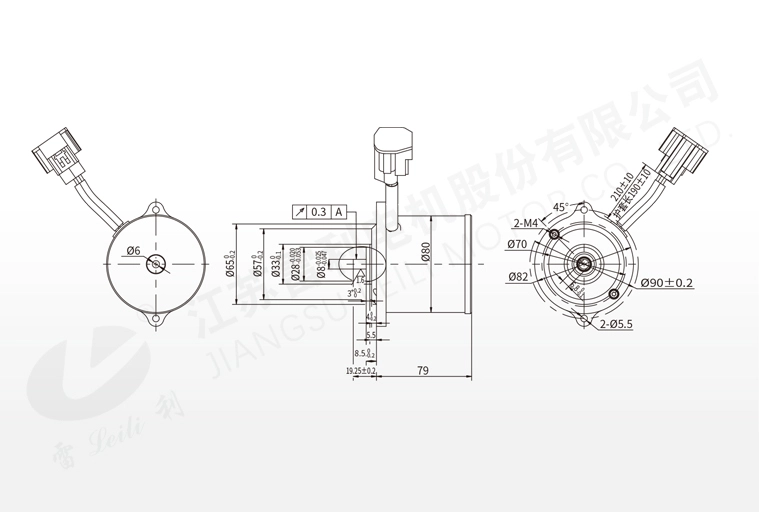

Mechanical Dimensions: mm
