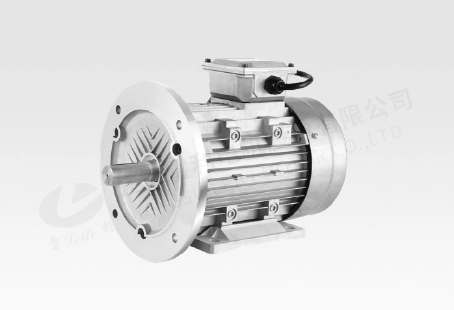

7.5KW Permanent Magnet Synchronous Motor

7.5KW Permanent Magnet Synchronous Motor
7.5KW Permanent Magnet Synchronous Motors

7.5KW Permanent Magnet Synchronous Motor

Product Introduction

  • High-efficiency motors up to 94.5%, rated power 7.5 kW, and rated torque 47.75 N·m.
  • Reliable protection level 55, rated voltage 380V, rated current 15.4A, frequency up to 250Hz.

Product Application

  • Industrial Equipment
  • Industrial Water Pump
  • Industrial Fan
  • Warm Reminder:
  • The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Inquiry Now

Product Parameters

Rated Power Rated Speed Rated Torque Frame Model Rated Voltage Rated Current Frequency Pole Efficiency Power Protection
(kW) (r/min) (N·m) (V) （A） (Hz) Factors Level
7.5 1500 47.75 112M ZB-112M2-1500 380 15 125 10 92.6 0.98 55
7.5 3000 23.88 112M ZB-112M2-3000 380 15.4 250 10 94.5 0.98 55

Mechanical Dimensions: mm

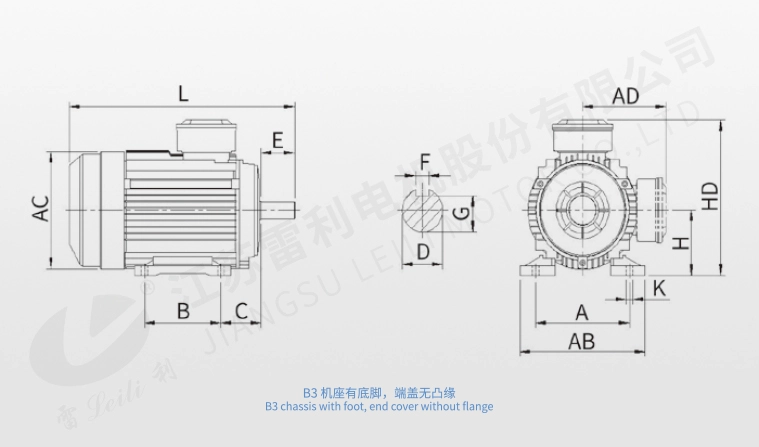

B3 chassis with foot, end cover without flange

B3 chassis with foot, end cover without flange

Frame Installation Size(mm) Outline Size(mm)
A B C D E F G H K AB AC AD HD L
112M 190 140 70 28 60 8 24 112 12 222 217 168 280 410
112M 190 140 70 38 80 10 33 112 12 222 217 168 280 430
112M 190 140 70 42 110 12 37 112 12 222 217 168 280 460

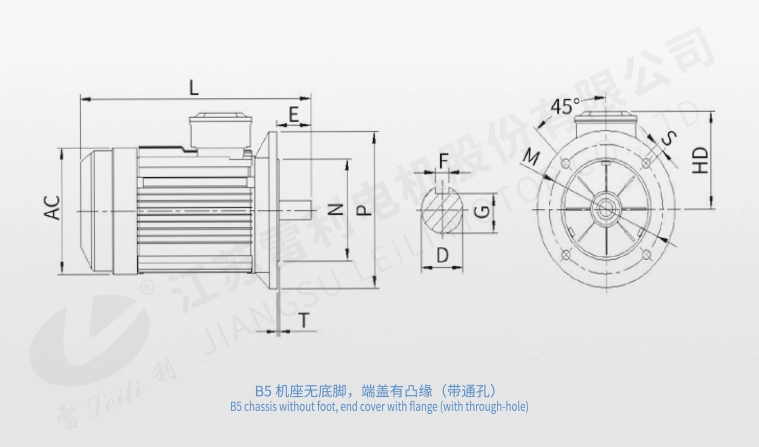

B5 chassis without foot, end cover with flange (with through-hole)

B5 chassis without foot, end cover with flange (with through-hole)

Frame Installation Size(mm) Outline Size(mm)
D E F G M N P S T AC AD L
112M 28 60 8 24 215 180 250 14.5 4 217 168 410
112M 38 80 10 33 215 180 250 14.5 4 217 168 430
112M 42 110 12 37 215 180 250 14.5 4 217 168 460

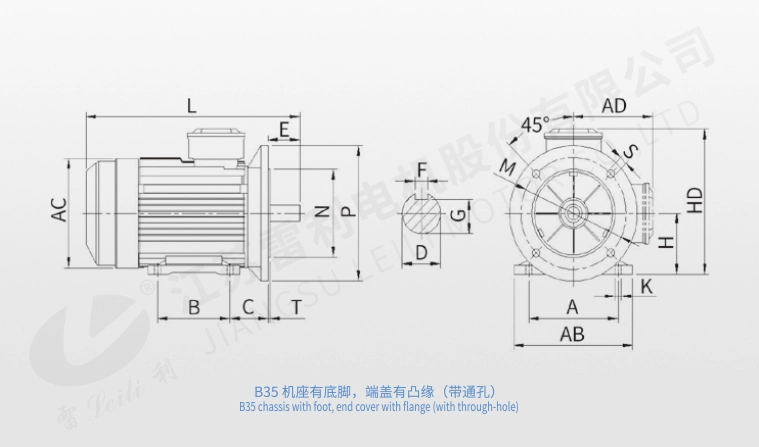

B35 chassis with foot, end cover with flange (with through-hole)

B35 chassis with foot, end cover with flange (with through-hole)

Frame Installation Size(mm) Outline Size(mm)
A B C D E F G H K M N P S T AB AC AD HD L
112M 190 140 70 28 60 8 24 112 12 215 180 250 14.5 4 222 217 168 280 410
112M 190 140 70 38 80 10 33 112 12 215 180 250 14.5 4 222 217 168 280 430
112M 190 140 70 42 110 12 37 112 12 215 180 250 14.5 4 222 217 168 280 460

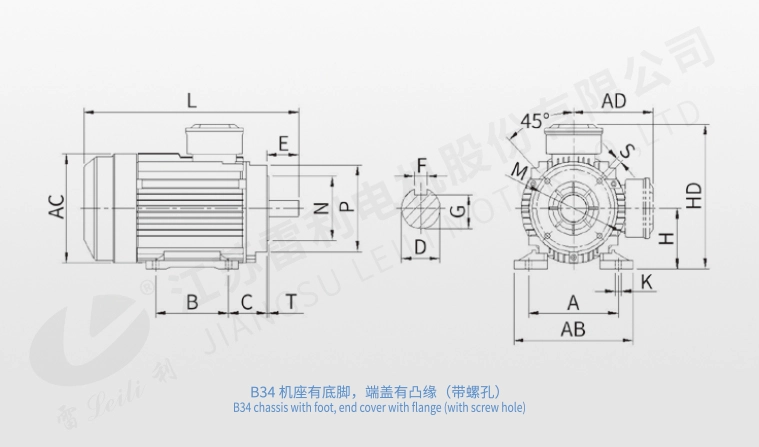

34 chassis with foot, end cover with flange (with screw hole)

34 chassis with foot, end cover with flange (with screw hole)

Frame Installation Size(mm) Outline Size(mm)
A B C D E F G H K M N P S T AB AC AD HD L
112M 190 140 70 28 60 8 24 112 12 130 110 160 M11 4 222 217 168 280 410
112M 190 140 70 38 80 10 33 112 12 130 110 160 M11 4 222 217 168 280 430
112M 190 140 70 42 110 12 37 112 12 130 110 160 M11 4 222 217 168 280 460

B14 chassis without foot, end cover with flange (with screw hole)

B14 chassis without foot, end cover with flange (with screw hole)

Frame Installation Size(mm) Outline Size(mm)
D E F G M N P S T AC AD L
112M 28 60 8 24 130 110 160 M8 4 217 168 410
112M 38 80 10 33 130 110 160 M8 4 217 168 430
112M 42 110 12 37 130 110 160 M8 4 217 168 460
