69ZYJ60 DC Brushed Gear Motor
Product Introduction
- Model: 69ZYJ60
- Performance: 12V, 26±3 RPM no-load, 23±3 RPM load, 3.2A max current, 1:69 reduction ratio.
- Load Capacity: Handles ≥23N rated load, delivers strong stall torque, ensuring stable and efficient operation.
- Power Efficiency: Low input current, optimized torque output, suitable for high-torque, low-speed applications.
Product Application
- Automobile: Car parking motor
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Voltage(V) | No-load Speed(RPM) | Input Current(mA) | Load Speed(RPM) | Current (A) | Rated Load(N) | Stall Torque(N·m) | Stall Current | Reduction Ratio | ||
| 12 | ▲ 26±3 | Single motor:1750±180 | ▲≤ 0.9 | ▲ 23±3 | Single motor: 1550±160 |
▲ 3.2max | 3 | ≥ 23 | ≤ 16 | 1:69 |

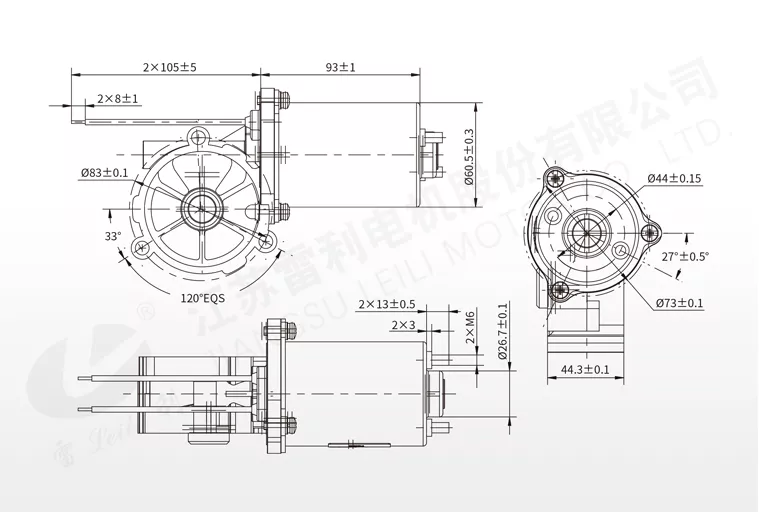

Mechanical Dimension: mm
