67UJ63 / 87UJ63 Series Excitation Motor
Product Introduction
- Model Variants: Includes 67UJ63-1, 67UJ63-2, and 87UJ63-1, supporting AC166-333V and AC176-288V voltage ranges.
- Performance: No-load speed ranges from 115 to 167 RPM, ensuring stable and efficient operation.
- Load Capacity: Delivers up to 510mN·m stall torque, ensuring strong output and reliable performance.
Product Application
- UPS emergency power switch motor
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall | Insulation Class |
||||||||
| Operating Range |
Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||||
| V | V | r/min | A | r/min | A | mN•m | g•cm | W | mN•m | g•cm | A | ||
| 67UJ63-1 | AC166-333V | AC230.0V | 167 | 0.35 | 85 | 0.85 | 5 | 51 | 48 | 22 | 225 | 1.1 | A |
| 67UJ63-2 | AC176-288V | AC230.0V | 154 | 0.35 | 73 | 0.65 | 4.5 | 45.9 | 34 | 17 | 173.4 | 1 | |
| 87UJ63-1 | AC176-288V | AC230.0V | 115 | 0.4 | 60 | 1 | 10 | 102 | 60 | 50 | 510 | 1.7 | A |

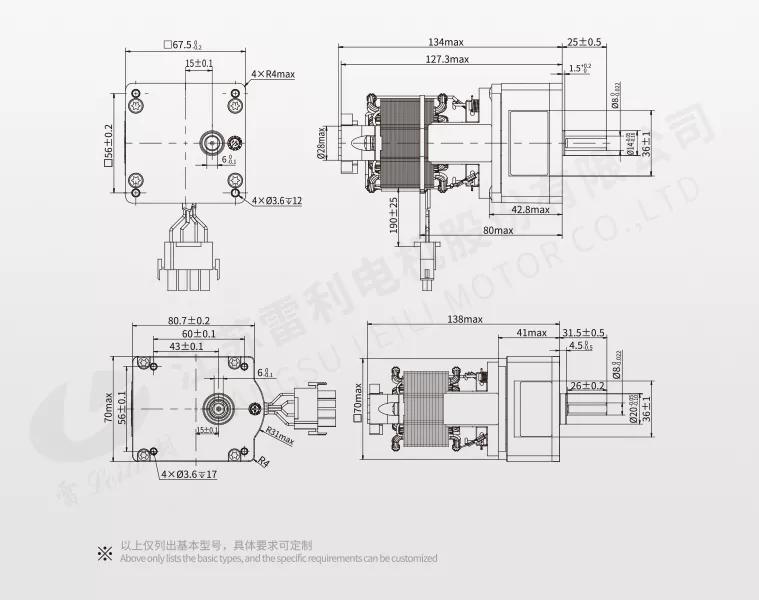

Mechanical Dimension: mm
