60mm Outer Rotor Brushless DC Motor
Product Introduction
- Rated power from 47.1W to 144.5W, offering reliable performance for diverse applications.
- 75% efficiency with noise levels under 50dB for quieter operation.
- Features Include a die-casting aluminum end cover, deep groove ball bearing, and bonded Ndfeb magnets.
Product Application
- Medical equipment
- Industrial equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com
Performance Parameters
| Model | 60ZWS50X-1 | 60ZWS63X-1 | 60ZWS75X-1 | |
| Parameter | ||||
| Rated Voltage | V | 24 | 24 | 24 |
| Rated Power | W | 47.1 | 97.4 | 144.5 |
| Rated Torque | N•m | 0.15 | 0.31 | 0.46 |
| Rated Speed | RPM | 3000 | 3000 | 3000 |
| Rated Current | A | 2.7 | 5.5 | 8.2 |
| No-load Speed | RPM | 3500 | 3500 | 3500 |
| No-load Current | A | 0.29 | 0.58 | 0.87 |
| Efficiency | % | 75 | 75 | 75 |
| Noise (ambient noise 20dB, test distance 1m) | dB | ＜50 | ＜50 | ＜50 |
| Hot Parameter | ||||
| Housing-Enviroment Thermal | K/W | 0.57 | 0.28 | 0.19 |
| Motor Thermal Time Constant | min | 4.8 | 5.3 | 6 |
| Environment Temperature | ℃ | 30 | 30 | 30 |
| Max Winding Temperature | ℃ | 87 | 87 | 87 |
| Motor Constant Coefcient | ||||
| Torque Constant | N•m/A | 0.056 | 0.056 | 0.056 |
| Back Electromotive Force Constant Valid Values | V/Krpm | 5.87 | 5.87 | 5.87 |
| Calculated Value | ||||
| Peak Torque | N•m | 0.45 | 0.93 | 1.38 |
| Peak Current | A | 8.1 | 16.5 | 24.6 |
| Rotational Inertia | Kg•cm² | 0.22 | 0.44 | 0.66 |
| Material | ||||
| End Cover | Die Casting Al | |||
| Bearing | Deep Groove Ball | |||
| Magnets | Bonded Ndfeb | |||
| Shaft | Carbon Steel | |||

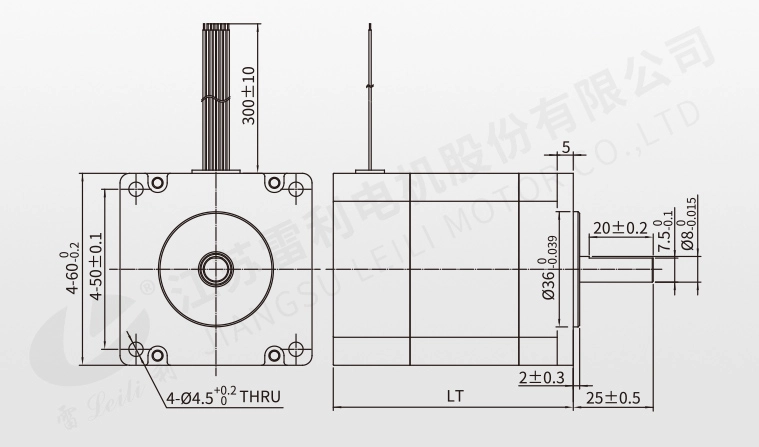

Mechanical Dimensions: mm
Motor Torque Curve
