60BY46 PM Stepper Motor
Product Introduction
- Model:60BY46
- Rotor uses permanent magnetic materials for continuous operation.
- Inner rotor type motor with evenly distributed N and S poles.
Application
- Industry: Valve control
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Motor Model | Step Angle | Excitation Method | Drive Way | Voltage | Current/Phase | Coil Resistance/Phase | Self-positioning Torque | Self-positioning Torque | Holding Torque | Noise | Working Temperature |
| (°) | (VDC) | (mA) | (Ω) | (mN.m) | (mN·m) | (Ω) | (A) | (℃) | |||
| 60BY46-1 | 15 | 2-2 | 12 | – | 26.2 | ≤ 27.44 | ≥ 127.4 | AC 500 [V] | ≤ 50 | -10 ～ 50 | |
| Phase | Unipolarity | 1 [min] | (No strange sound) |

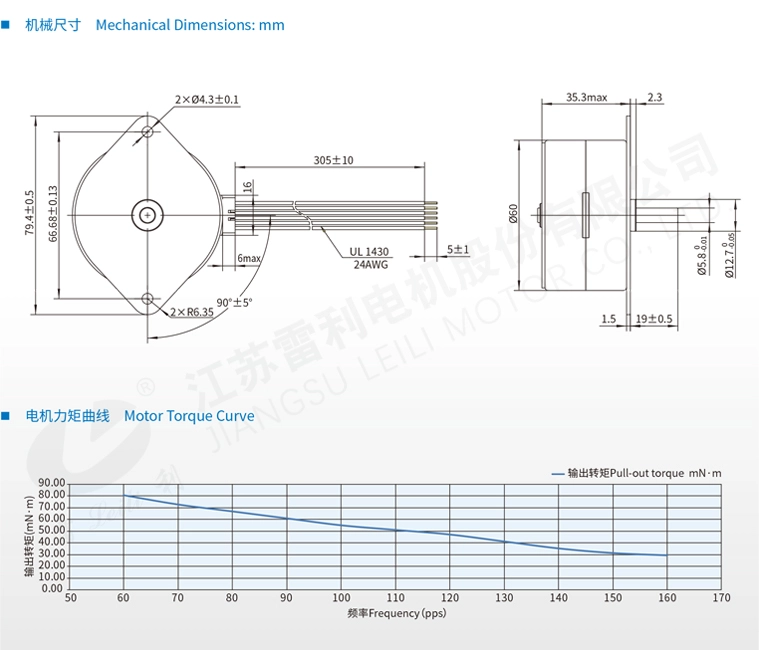

Mechanical Dimensions: mm
