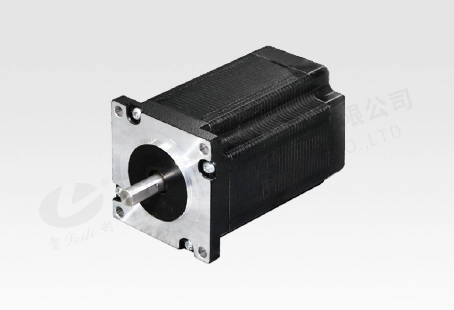

60 Series Hybrid Stepper Motor
Product Introduction
- Offers a range of holding torques from 1 N·m to 3 N·m, ensuring stable and precise motion control.
- With varying current ratings from 2A to 5A, they provide flexibility for different performance needs.
Product Application
- CCTV monitor
- Medical appliance
- OA financial equipment
- Industrial equipment
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Current (RmsA） |
Resistance （Ω） |
Inductance （mH） |
Holding Torque （N·m） |
RotorInertia （g·cm²） |
Motor length （mm） |
Motor Weight （g） |
| 24H2047 | 2 | 1.5 | 3.4 | 1 | 240 | 47 | 600 |
| 24H2056 | 3 | 0.8 | 2.3 | 1.5 | 340 | 56 | 800 |
| 24H2068 | 4 | 0.6 | 1.9 | 2.1 | 490 | 68 | 1000 |
| 24H2085 | 5 | 0.4 | 1.8 | 3 | 690 | 85 | 1300 |
Mechanical Dimensions: mm
